General Electric 480-z6767ac Spectra Series Switchboard 480V 1000A 3 Phase 60hz

Neutral Amps: 1000A

Section Amps: 1000A

Support Amps: 1000A

3 Phase

Volts: 277/480V

Wire: 4

60Hz, Type 1

600 Amp Current Limiting Circuit Breaker: No. SGLA36AT0600, 600VAC Max Amp, 3 pole, SRPG600A Plug Type

400 Amp Current Limiting Circuit Breaker: No. SGLA36AT0400, 600VAC Max Amp, 3 pole, SRPG400A Plug Type

100 Amp Current Limiting Circuit Breaker: No. SELA36AT0100, 600VAC Max Amp, 3 pole, SRPE100A Plug Type

30 Amp Current Limiting Circuit Breaker: No. SELA36AT0030, 600VAC Max Amp, 3 pole, SRPE30A Plug Type

From the manufacturer: Spectra Series Switchboards offer a state-of the-art design that provides the high quality, safety and reliability long associated with GE group-mounted switchboards. Spectra Series Switchboards are designed and manufactured to meet the stringent GE internal standards along with NEMA, NEC, UL and CSA requirements. In addition, Spectra RMS Circuit Breakers meet all NEMA, NEC, UL and CSA requirements, plus those for JIS and IEC.

Condition: Used

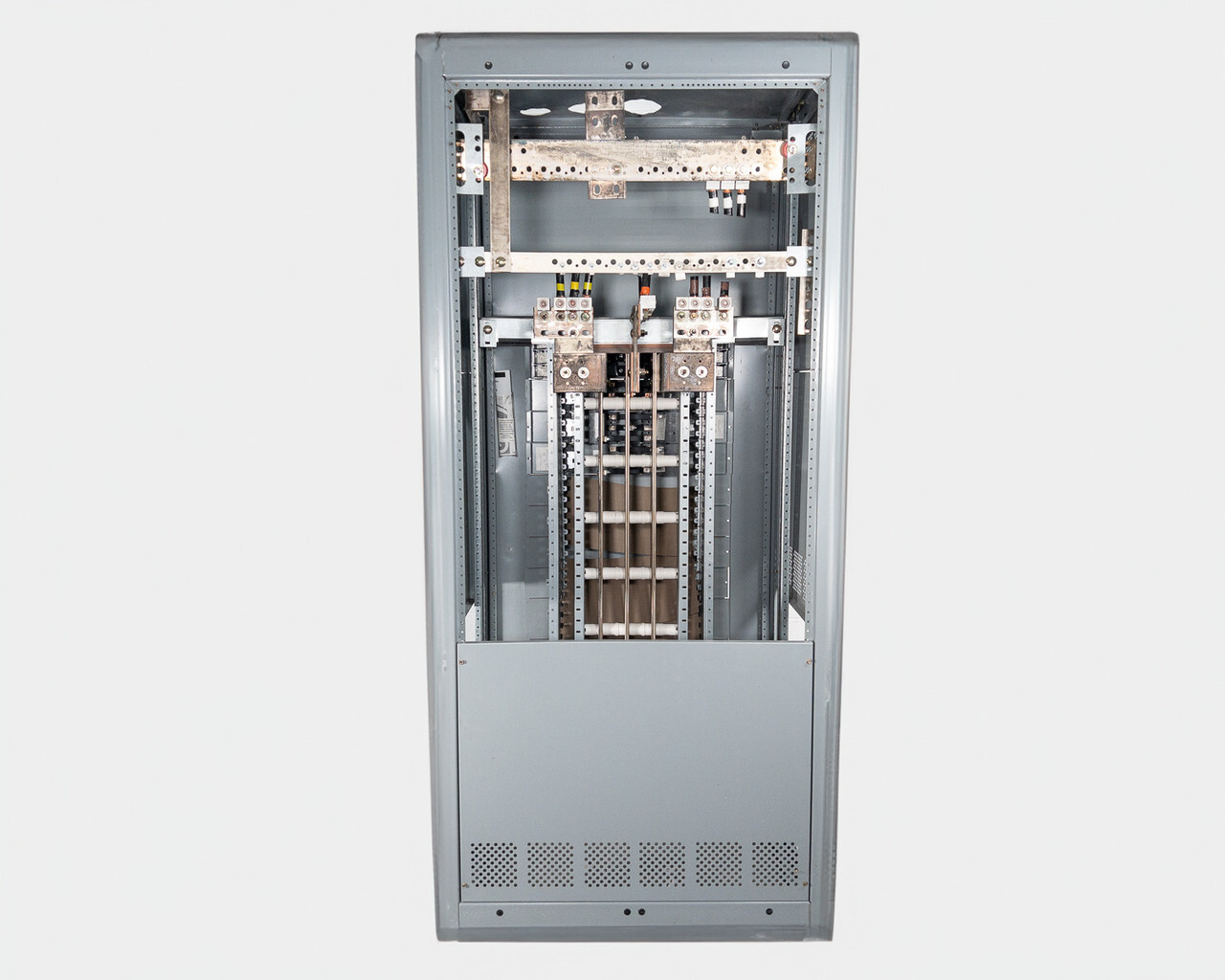

This used spectra series switchboard has been inspected and appears to be in good condition. It was pulled from an office building that was being converted to a manufacturing use. Please view our photo set and contact us if you have any questions. Item has not been tested but is assumed working as it was pulled from a working environment. Item has scuffs and scratches from removal from facility. Front panel covers show signs of bulging from a drop but otherwise in good condition. Dents on paneling has been bent back into place as best we could. All copper wire has been cut and removed with small, color coded pieces left inside terminals to show original setup.
