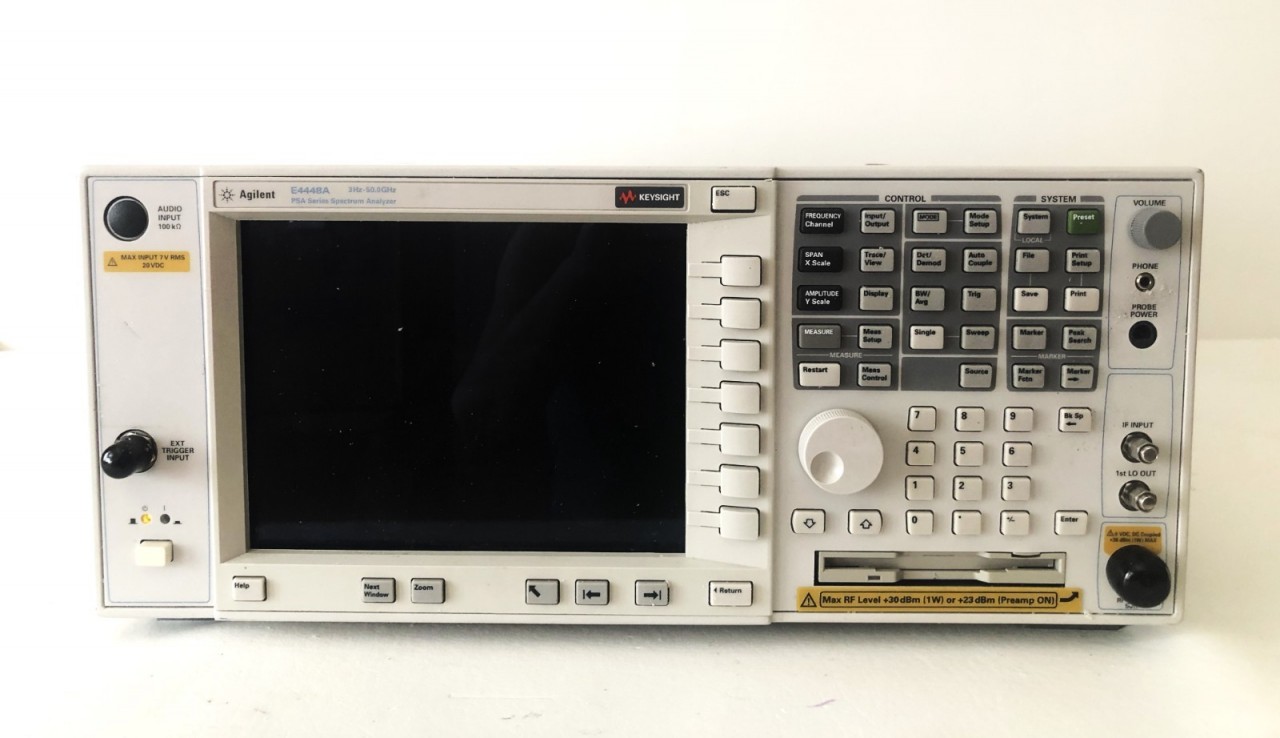

Keysight Agilent E4448A 3Hz-50GHz PSA Spectrum Analyzer with options 111, 115, 226, and AYZ – see description below.  Unit has been lab tested and includes a 30 Day Warranty. Fresh calibration available for an additional fee – Contact Us for details

Options Installed:

111 – USB device side I/O interface

115 – 512 MB user memory

226 – Phase noise measurement personality

AYZ – External mixing

Performance

+/-0.19 dB absolute amplitude accuracy

-154 dBm displayed average noise level (DANL)

-118 dBc/Hz phase noise at 10 kHz offset

81 dB W-CDMA ACLR dynamic range

Analysis Bandwidth

10 MHz analysis bandwidth (Option B7J for the Basic mode)

Optional 40 or 80 MHz analysis bandwidth to capture and measure complex signals. View the demo

-78 dB (nominal) third order intermodulation for 40 or 80 MHz analysis bandwidth

Up to 300 MHz analysis bandwidth for calibrated VSA measurements

Flexibility

Flexible platform with 16 optional, easy-to-use built-in measurement personalities and hardware options

Agilent''s PowerSuite one-button power measurements included as standard

Description:

The Agilent E4446A PSA high-performance spectrum analyzer measures and monitors complex RF, microwave, and millimeter-wave signals up to 50 GHz. With optional external mixing, the frequency coverage extends to 110 GHz with the Agilent external mixer, and to 325 GHz with other vendors'' mixers. Agilent external mixer offerings.
