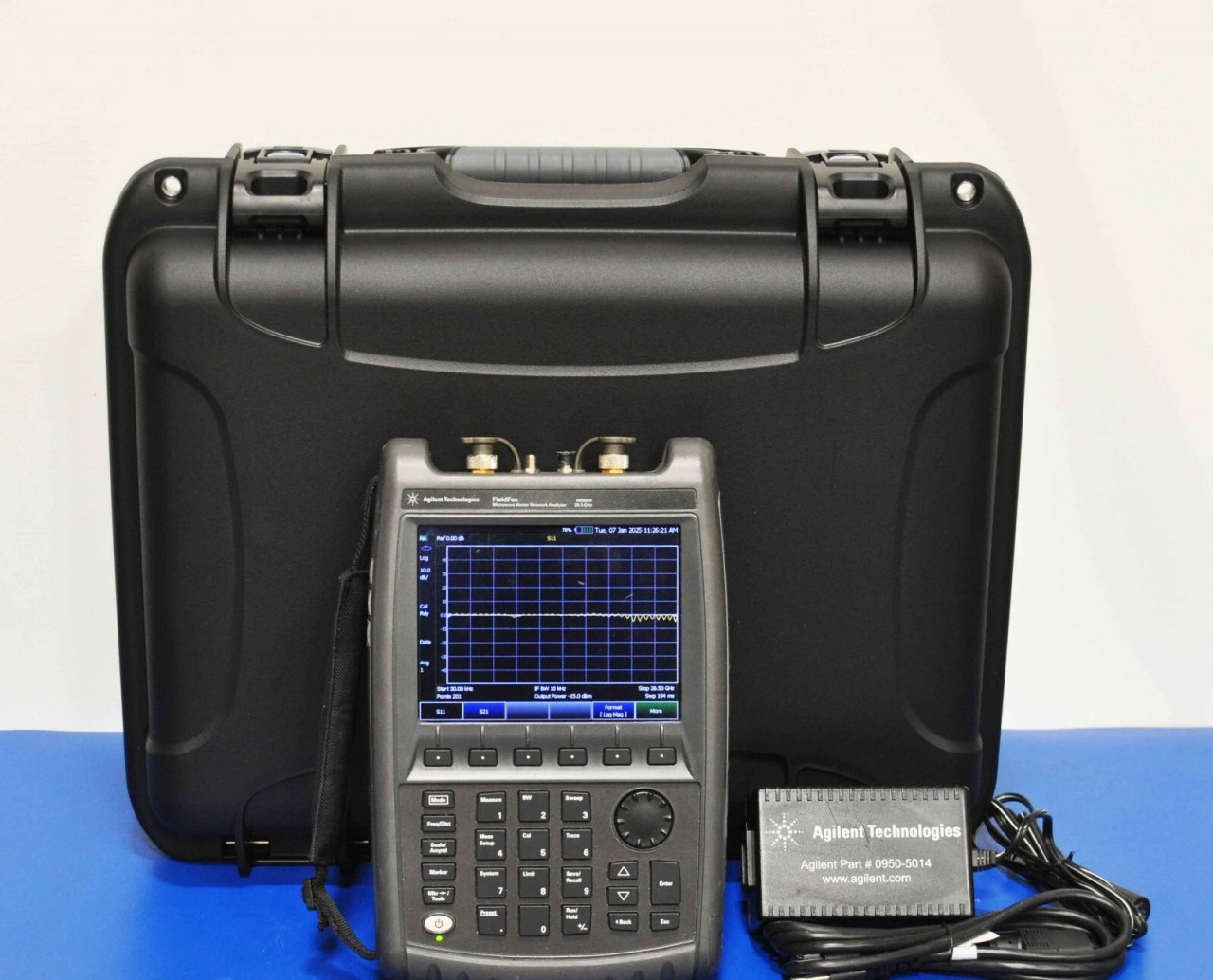

This item is an excellent condition used Keysight N9928A FieldFox Vector Network Analyzer 26.5GHz VNA. External case shows Agilent but internal firmware shows Keysight. Includes hard carry case, AC adapter/charger, and 180 day warranty.. All pictures are of the actual unit and accessories.

We Calibrate Your Test Equipment!

Contact us for more information on Calibration.

The FieldFox high-performance Vector Network Analyzer from Keysight offers the precision of a benchtop RF and microwave analyzer in the industry’s most integrated handheld unit. This network analyzer with (optional) spectrum analyzer can measure up to 50GHz. Compact size of only 11.5” (H) x 7.4” (W) x 2.8” (D), this lightweight unit weighs approximately 7lbs and provides battery life of up to 3-1/2 hours, allowing easy transportation and placement close to the object to be measured, achieving more efficient characterization. While designed for outdoor use, its high performance makes this unit completely suitable in R&D applications in the lab or on the bench. The base function of the FieldFox RF Combination Analyzer is a cable and antenna analyzer which can be configured to include a spectrum and network analyzer. Optional capabilities include power meter, independent signal generator, vector voltmeter, interference analyzer, variable DC source, and GPS receiver.

N9928A Bandwidth: 30KHz ~ 26.5GHz

Directivity 34 dB, dynamic range 100 dB to 9 GHz, 94 dB to 18 GHz

Flat output power (± 1 dB) across whole frequency range, adjustable in 1 dB steps

Transmission/reflection (S21, S11), or full two-port (S21, S11, S12, S22)

Independent source, vector voltmeter (VVM), power sensor and built-in measurements

RF source: CW, CW coupled, and tracking

VVM: compare phase and electrical length

Power measurements with USB sensor: (sensor dependent)

Built-in power meter

Three-year warranty

Cable and Antenna Analyzer (CAT), Vector Network Analyzer (VNA, optional)

Dynamic range: 100 dB

CAT: Distance-to-fault, return loss, cable loss

VNA (optional): S11, S21, S22, S12, magnitude and phase

Spectrum Analyzer (optional)

± 0.5 dB amplitude accuracy, full band, over full temperature range of -10 to +55°C (14 to 131°F)

Spur-free dynamic range: better than 105dB

Full-band tracking generator

Built-in power meter: 5 kHz to 18 GHz
