speci:
as the ultra compact size, one single scanner support all the communication technologies, include:
LTE FDD, LTE TDD, WCDMA, CDMA (IS95, 1X, EVDO), TD-SCDMA, GSM, WIFI;
it has two same RF tunnels to LTE MIMO processing; with the low power consumption (<15W) and no fan design, it can support long time stable drive testing; the scanner support all bands from 570MHz to 3800 MHz; combining the high speed and high dynamic range scanning, with 0% error decoding (for any continuous 24 hours drive test), Pctel IBflex is the best for drive test or indoor testing; since the wide band spectrum scanning by high speed and its high sensitivity, it can replace all the spectrum analyzer for RF interfernce checking.

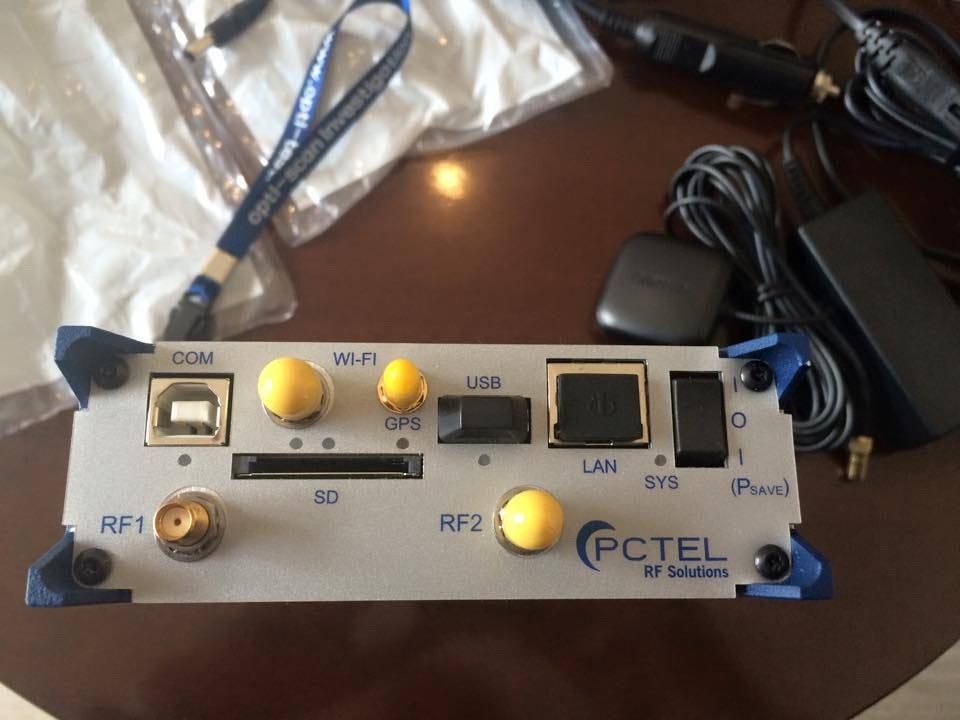

each one kit include:
Low profile antenna (750-1250 MHz, 1650-2700 MHz, SMA interface) * 2
GPS antenna (SMB interface) * 1;
Vechicle power cable * 1;
AC power supply * 1;
USB cable * 1;
the quotation as following: Spectrum Analysis ,Enhanced Power Scan ,GPS Navigation, Absolute Time Stamp , WiFi USB Adaptor support , Bluetooth Interface support , Recording to SD Card ,LTE FDD, TD-LTE (LTE TDD) 2 technologies included
