OFS-950S Core-Alignment Fusion Splicer

The Precision Rated Optics OFS-950S Fusion Splicer (Core-Alignment) contains a built-in automatic thermal stripper, cleaner dispenser, one-step precision cleaver and dual-oven heater. The OFS-950S features touch-screen operation and over 300 splice cycles per battery charge. The OFS-950S can splice any single fiber, single-mode or multi-mode fiber and is fully compatible with splice-on connectors.

Features of the OFS-950S Core-Alignment Fusion Splicer

All-in-One Design

Navigational Touch-Screen with 4.3 Color Monitor

250um/900um Micron Fiber Holders

Thermal Stripper

Long Battery Life (More than 320 Charge Cycles)

Water, Dust and Shock Resistant

Attached Sleeve Loader

Compatible with SOC Connectors (Option)

Dual-Sleeve Heater

Specifications of the OFS-950S Core-Alignment Fusion Splicer

IPAS Core-to-Core Alignment (Image Pattern Analysis Alignment System)

SMF (ITU-T G.652), MMF (ITU-T G.651), DSF (ITU-T G.653), NZDSF (ITU-T G.655), EDFA, EI980,

Splicing Available with Various Fiber Types (SM/MM), ITU-T G.657

Applicable Fiber Dimensions: Single: Cladding Diameter 80µm ~ 150µm , Coating Diameter 100µm ~ 1000µm

Fiber Setting and Cleaved Length: 250µm (Coat) : 8 ~ 16mm, 900µm : 16mm

Typical Splice Loss: SMF: 0.02dB, MMF: 0.01dB, DSF: 0.04dB, NZDSF: 0.04dB

Return Loss: > 60dB

Splicing Time: Typically 9 sec

Sleeve Heating Time: Typically 20 ~ 26 sec with S-160 (60mm) Tube

Storage of Splice Results: Last 2,000 Results (Image: 100 results)

Splice Loss Estimate: Available

Applicable Protection Sleeve: 45mm(Fiber), 28mm or 32mm (Connector)

Operating Conditions:

Altitude: 0 ~ 5000m Above Sea Level, Temperature: -10 ºC to 50 ºC,

Humidity: 0~95%, Wind: 15m/s, Non-Condensing, Dust Proof, Shock Proof

Storage Condition: Temperature: -40 ~80 , Humidity: 0~95%

Mechanical Proof Test: 2N / 4.4N (OPTIONAL)

Dimensions: 140(W) 225(L) 125(H)mm (Include Monitor, Rubber)

Weight: 2.95kg (Including Battery)

Viewing Method and Display: Two CMOS Cameras and 3.5” color LCD Monitor with Touch Panel

Fiber View and Magnification: X/Y : 300X/170X

Power Supply: DC 14.8V Battery(7,700mAh), 100 ~ 240V AC Adapter

No. of Splice Cycles with Battery: 320cycle, Lithium Polymer Battery

Electrode Life: More than 1,000 Times Splicing Without Exchange

Terminals: USB, External Power (DC 12V Available for Car Lighter Input)

OFS-950S Standard Package Includes:

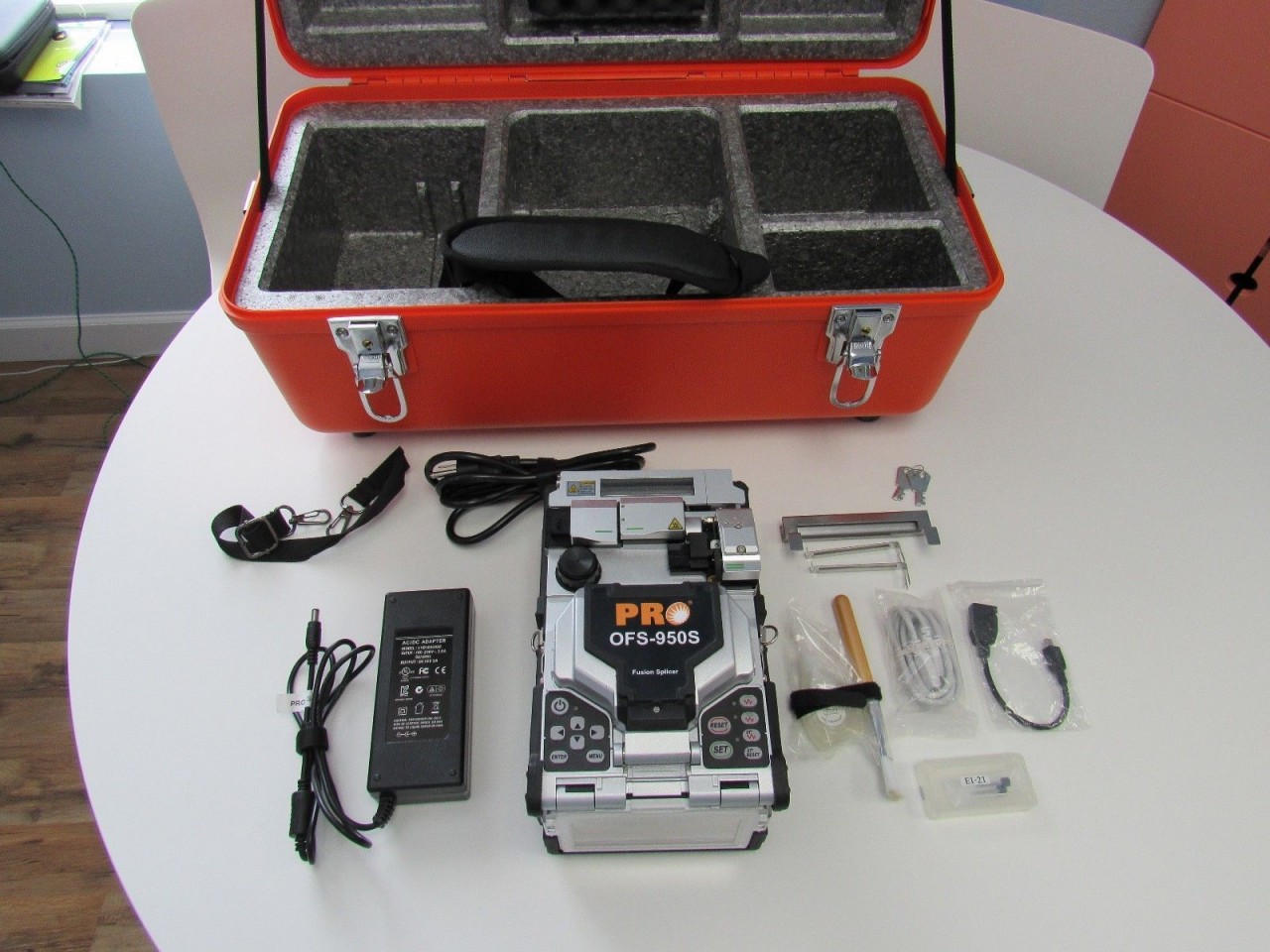

Fusion Splicer with Auto Stripper, Cleaner Unit and Cleaver, AC Adaptor, Sleeve Loader, Spare Electrodes, Battery Pack, Cooling Tray, User Manual, Carrying Case
