SPECI:
10 Kw UHF SCREEN SERVICE Analog (or digital => 2500/3500Watt)
Television Broadcast transmitter
It can to work in Digital DVB-T, DVB-T2, ATSC, ISDB (With modulator replacement) or
Analog (PAL/NTSC) transmission (for NTSC System we reaplace free the modulator)
For Analog transmission Power Out: 10 Kw p.s.
For Digital transmission Power Out: 2.5/3.0 Kw RMS(DVB-T,DVB-T2) , 3.3/3.7 Kw RMS(ATSC,ISDB)

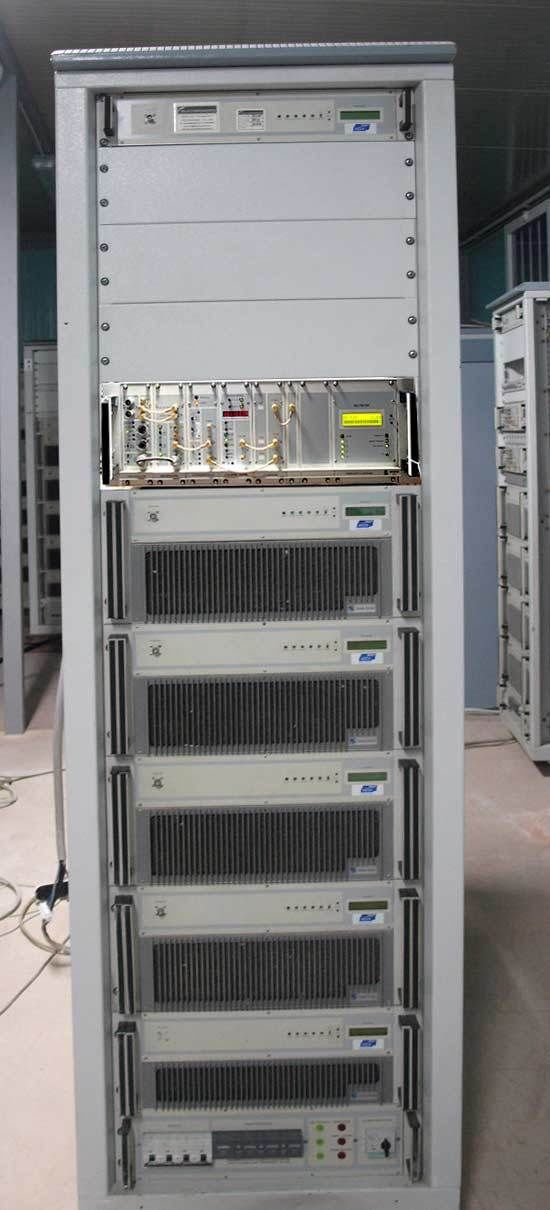

The transmitter is composed by:
- Rack-Closet
- 1 or 2 (for dual drive mode)Pal or NTSC Modulator + Channel Up/converters/Driver (For Analog configuration)
- DVBT/T2 or ATSC or ISDB + Channel Up/converters/Driver (For Digital configuration)
- N.04 x 2.5 Kw Power amplifier modules (Stand alone modules);
- 1 x 4 Cells Digital High Power Filter out;
- 1 x Control logic system;
Power 380Vac three phases.
