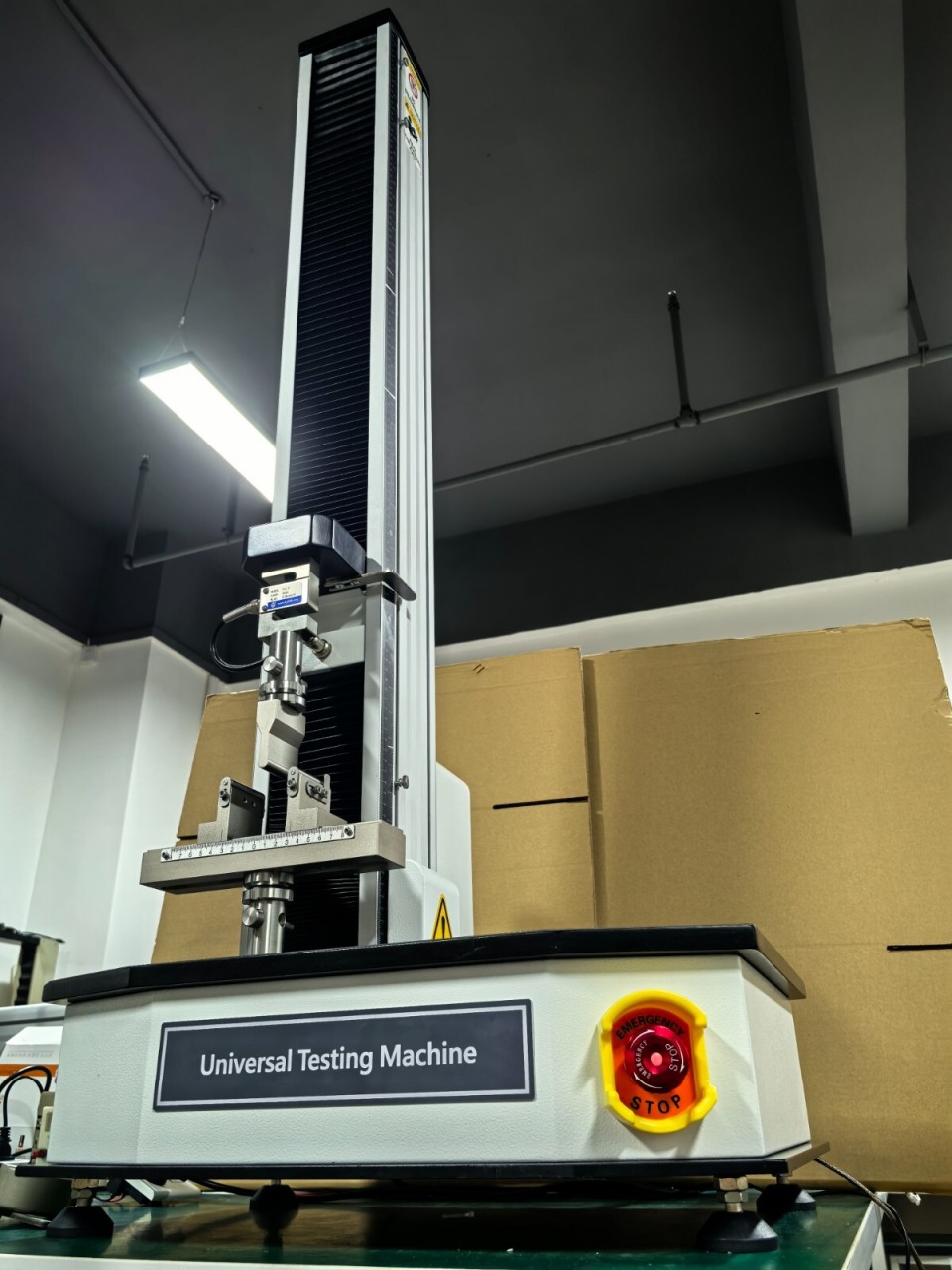

Hot Sale Universal Testing Machine UTM 5kN Only USD $5.150.00 Good condition and ready to use, come with 1 year warranty.

Comes with these accessories:

1) Wedge Grip

2) Compression Grip

3) Laptop loaded with Ideai Test Software

4) Pad that can operate with the Ideai Test Software

MY Lab equipment offers single column test Machine, which are ideal for tension and compression applications where test force requirements are up to 5 kN (1,125 lbf) with speeds available to 1000 mm/min. They apply a controlled tensile force to a specimen until it reaches its breaking point, allowing for the determination of parameters such as tensile strength, yield strength, elongation, and modulus of elasticity. These machines are widely utilized in industrial quality control laboratories and research centers.

It is designed to accommodate various materials, including metals, plastics, ceramics, composites, and more, this series of machines provides the capability to test a broad range of materials.

Some popular standards available:

ASTM D638 Standard Test Method for Tensile Properties of Plastics

ASTM E8/E8M-16: “Standard Test Methods for Tension Testing of Metallic Materials” (2016)

ASTM D 3039/D 3039M: “Standard Test Method for Tensile Properties of Polymer Matrix Composite Materials” Flexible materials

ISO 6892-1: “Metallic materials. Tensile testing. Method of test at ambient temperature”

ISO 7500-1 Metallic materials - Verification of static uniaxial testing machines

Software Features

- Microsoft Windows, 95,98,2000,NT,XP,Win 7/10

-Fully control of crosshead by computer

- Speed, Position, Force & Strain control

- Real time Test Graph available time Stress - strain, force - displacement, force - time, displacement –time graphs

- Values on the graph by hovering the mouse

-Test Setting

Test methods preloaded and speed adjustable Automatic saving the after test termination

-Test programming

-Ability to de ne special tests based on process method (i.e. test with specified pre-load, test cycle, change test)

-Sample Setting input gauge length and area. Area can be diameter (or width and thickness).

-Enhanced reports of tests

Test Graph included Detection of the data points: Peak, Break, Yield Information of Data parameters: Force, Stress, Strain, Elongation, and Modulus

-Data export to Microsoft Excel
