ITEM DETAILS

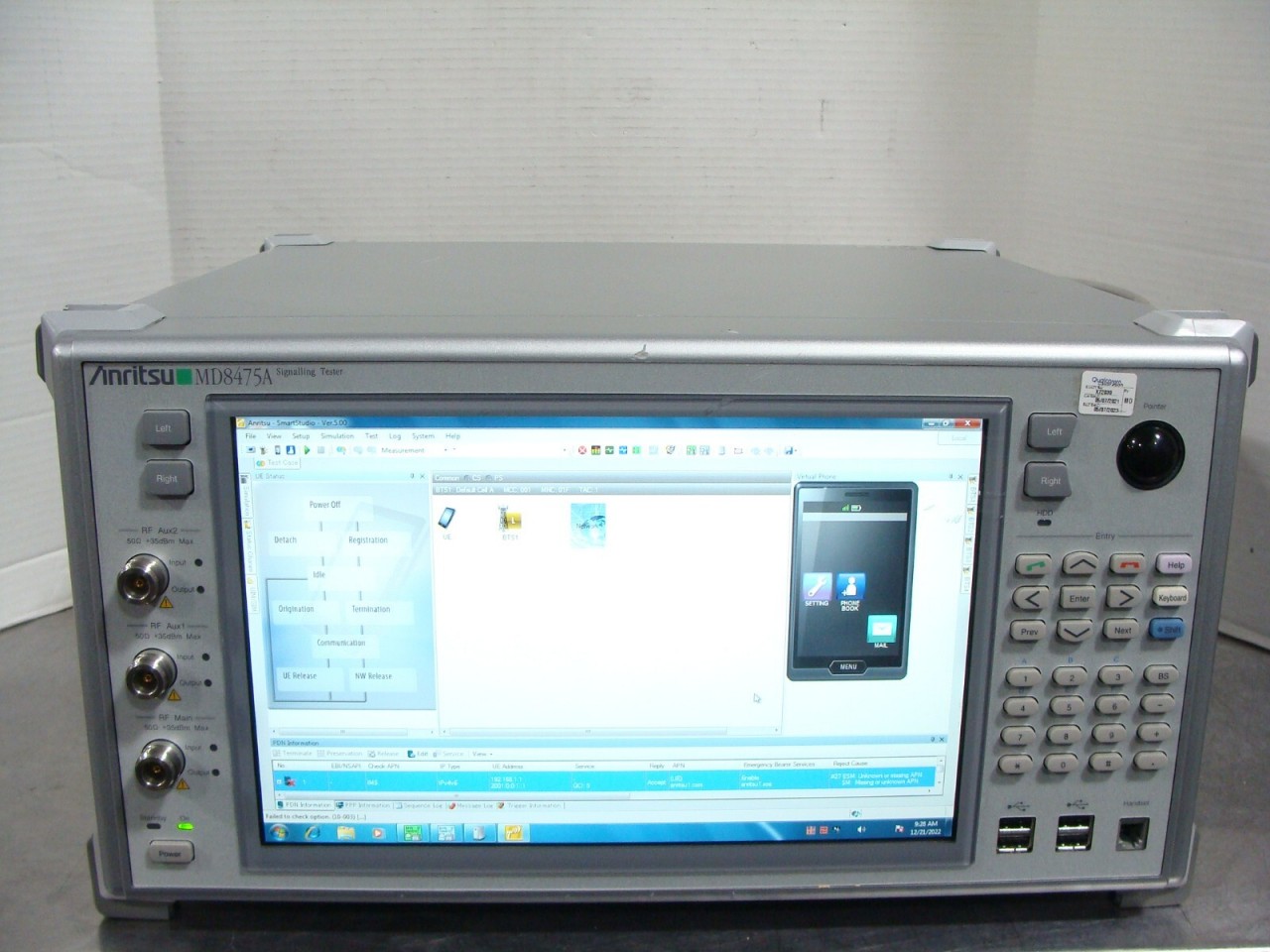

This listing is for one Anritsu MD8475A Communication Analyzer / Signaling Tester / Base Station Simulator with Hardward Options 2nd RF / GSM Signaling Unit & Upgrade to MD8475B.  Under current calibration until May 2023.  Please see below for software / license options.  Sysem is running MX847501A V. 5.0 Signalling Tester Control Software & MX847570A V. 5.00 Smart Studio Software.

The MD8475A Signalling Tester is a simple bench-top solution helping engineers test and evaluate worldwide mobile systems in the shortest possible time. Furthermore, a setup of a base station and the check of a verification result can be easily performed by using the user interface “SmartStudio” which does not make it conscious of the scenario which was required for the base station simulator until now.

The Signalling Tester MD8475A is an all-in-one base station simulator supporting LTE, LTE-Advanced, W-CDMA/HSPA/HSPA Evolution/DC-HSDPA, GSM/EGPRS, CDMA2000 1X/1xEV-DO Rev. A and TD-SCDMA/TD-HSPA. It supports service, VoLTE and call-processing tests for multimode LTE smartphones and mobiles with excellent cost-performance.

Using the GUI-based SmartStudio MX847570A software with the MD8475A base-station simulator makes it easy to configure a smartphone test environment. Various parameters, such as the frequency and control status, are set at the GUI to run one-touch tests—including Reject tests that cannot be run easily on live networks. Eliminating the need to create test cases or understand signalling protocols makes it easier to focus on testing smartphone functions and performance.

A full line of test environments are supported for the general mobile verification phase, such as max. throughput performance tests, stress tests, and battery consumption tests of multisystem LTE terminals using 2x2 MIMO, as well as CS Fallback, call connection reliability and stability tests at handover, communication tests at low RF power, and service verification using LTE multiple PDN and SMS in a 2-cell environment.

Hardware Options Installed:

MD8475A-001 - 2nd RF

MD8475A-020 - GSM Signaling Unit

MD8475A-270 - UPGRADE TO MD8475B

Software / License Options Installed:

MX847500A - Platform Software

MX847501A - Control Software

MX847502A - Multi-cell Software (License)

MX847510A-001 - HSPA Option (License)

MX847510A-011 - HSPA Evolution/DC-HSDPA Option (License)

MX847510A-050 - W-CDMA Ciphering Option (License)

MX847520A-001 - EGPRS Option (License)

MX847520A-050 - GSM/GPRS Ciphering Option (License)



MX847570A-010 - W-CDMA Option (License)

Overall a nice instrument, ready for use.  May have light scuffs from use / moving around.  Please make sure this works for your needs before purchase.  Check out my other listings for other MD8475A if this one doesn't have the exact options you're looking for.
