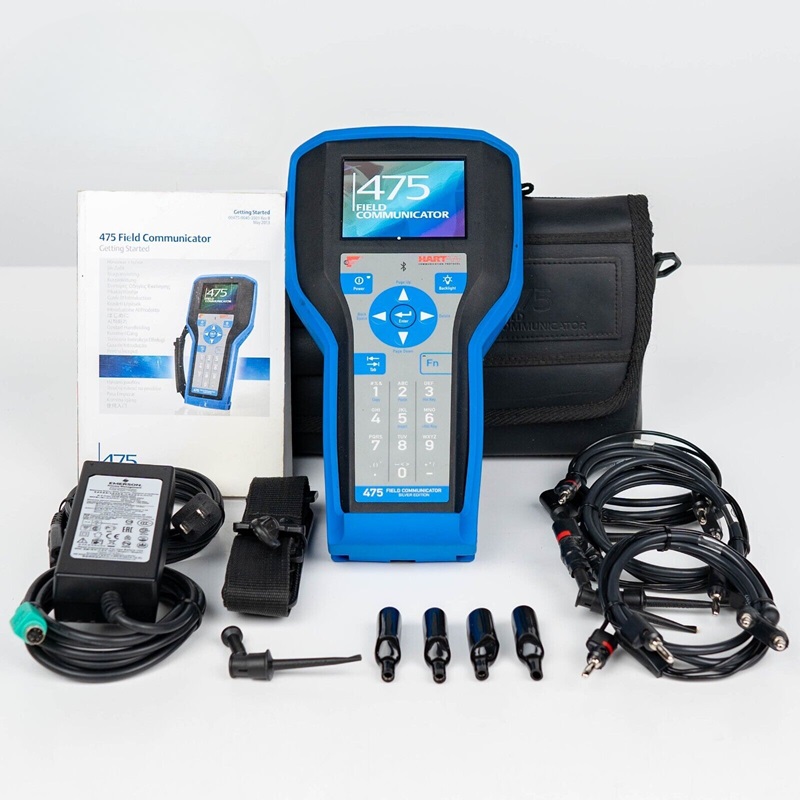

Emerson Hart 475 Field Communicator Version v3.8 With Accessories

Emerson Hart 475 Field Communicator Version v3.8 With Accessories

Price:

$1,895.00

SKU:

BG00014

Brand:

Emerson

Condition:

Used

Availability:

In Stock

Product Description

On Sale Emerson Hart 475 Field Communicator Version v3.8 With Accessories good condition and ready to use Only US$ 1,890.00

Emerson introduces the 475 Field Communicator, the next generation in handheld communicator technology. The Field Communicator extends beyond device configuration functionality to provide device diagnostic and troubleshooting capabilities in the field and on the bench. Quick boot-up and fast operating time mean that jobs can be performed quickly and easily, while longer battery life ensures days, not hours, of operation. The intrinsically safe 475 Field Communicator supports HART, WirelessHART and Foundation Fieldbus devices.

Highlights

Full-color graphical user interface
Powerful field diagnostics
Bluetooth communication
Long-lasting Lithium-Ion power module
Universal support for HART and FOUNDATION Fieldbus devices

Specifications:

Microprocessor: 80 MHz Hitachi SH3
Memory Internal Flash: 32 MB
System Card: 1 GB secure digital card
RAM: 32 MB
Weight: Approximately 1.65 lb. (0.75kg) with battery
Display: 1/4 VGA (240 by 320 pixels) color, 3.5 in. (8.9 cm) transflective display with touchscreen Anti-glare coated
Keypad: 25 keys including 4 action keys, 12 alphanumeric keys, tab key, function key, backlight key, power key, and 4 cursor-control (arrow) keys; membrane design with tactile feedback
Battery: Rechargeable Lithium-Ion power module
Battery Operating Time: 20 hours – continuous use; 40 hours – typical use; 80 hours – standby mode
Battery Charger Options: Input voltage 100-240 VAC, 50-60 Hz; Cables included with U.S., Europe, and U.K. plugs
Battery Charger Connection: Mini DIN 6-pin jack
HART and Fieldbus Connection: Three 4mm banana jacks (one common to HART and FOUNDATION Fieldbus)
IrDA Port: IrDA (Infrared Data Access) port supporting up to 115 Kbps; ± 15 degrees recommended maximum angle from center line; Approximately 18 in. (45.7 cm) recommended maximum distance
Bluetooth: Up to 32.8 ft. (10 m) communication distance; Uses standard Windows drivers; FCC, IC, and CE approvals; Certified for use in over 60 countries
Usage Temperature: -10°C (14°F) to +50°C (122°F)
Battery Humidity: 0% to 95% RH (non-condensing) for 0°C (32°F) to +50°C (122°F)
Charge Temperature: 10°C (50°F) to +40°C (104°F)
Storage With Batteries Temperature: -20°C (-4°F) to +55°C (131°F)
Storage Without Batteries Temperature: -20°C (-4°F) to +60°C (140°F)
Enclosure Rating: IP51 (from front)
Shock Resistance: Tested to survive a 1-meter drop test onto concrete
Upgrade Requirements: PC with Internet access; CD Rom drive; IrDA port (or adapter) or Bluetooth (or adapter); SD Card Reader (required for some upgrades); Windows XP (SP2 or SP3), Windows Vista Business (SP1), or Windows 7
