Cutler Hammer Magnum DS MDSC08 Breaker (EO,DO) ~ 800 Amp

Image 1
  • Image 1
Price:
$8,000.00
SKU:
BG00208
Brand:
Magnum
Condition:
Used
Availability:
Ready Stock
Quantity:
Contact Us
Share

Product Description

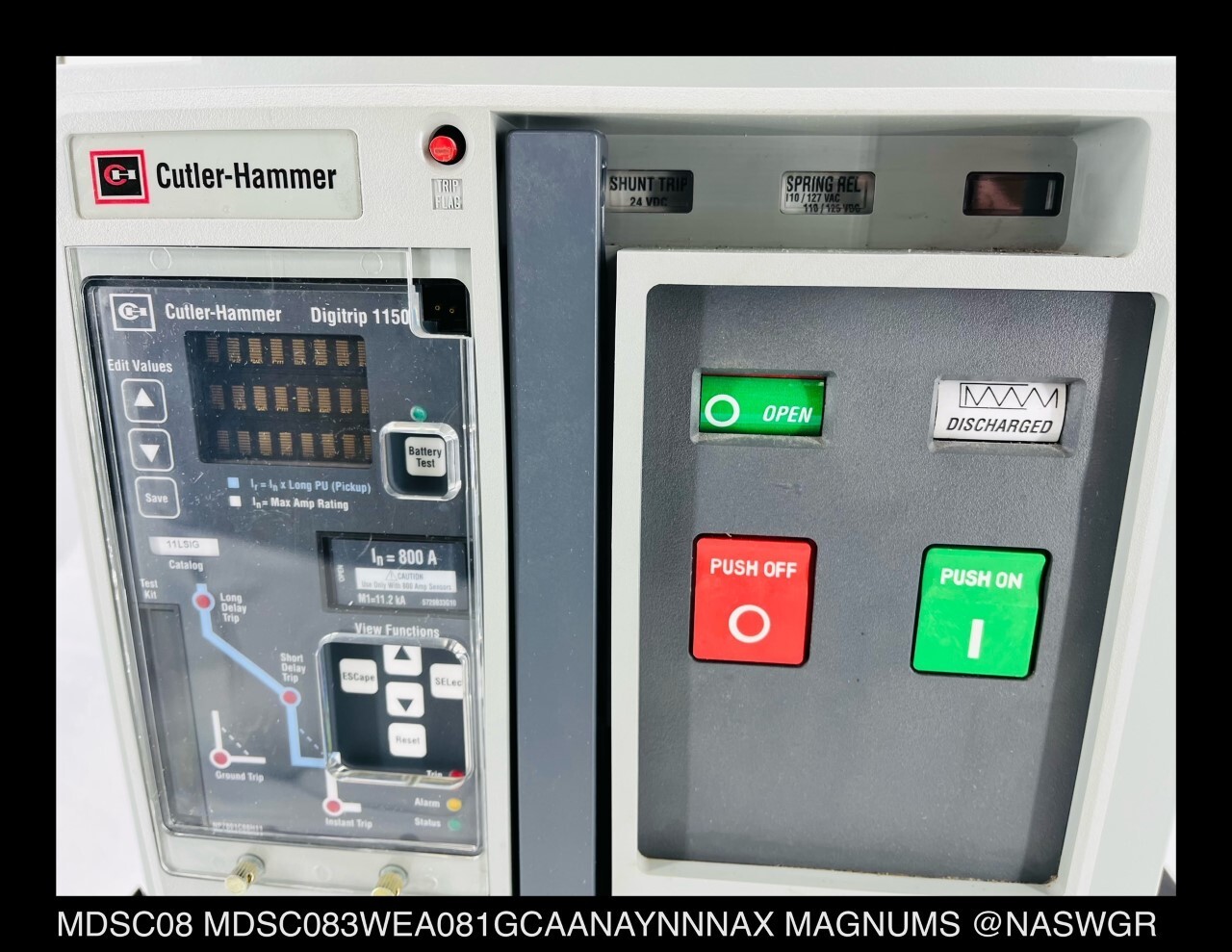

Cutler Hammer Magnum DS MDSC08 Circuit Breaker
Cat#: MDSC083WEA 081GC AAN4Y NNNAX
Magnum DS Catalog Breakdown
MD - Magnum DS Breaker
S - Standard Frame
C - Interrupting/ Withstand Rating @ 100kA
08 - 800 amp Frame
3 - 3 Pole
W - Drawout Frame
E - English Nameplate
A - Non-DSL
08 - 800 A Sensors and Rating Plug
1G - 1150 (LSIG) control power 120vAC
C - 24vDC Shunt Trip
A - 110-125vAC (5sec) Motor Operator
A - 110-127vAC/DC Spring Release Device
N - No UVR Device
4 - 4A/4B Auxiliary Switch
Y -  Mech Trip Indicator and OTS/Bell Alarm
N - No Pushbutton Cover
N - No Operations Counter / Kirk Lock
N - No Latch Check Switch
A - Shipping Options
X - Future Breakers
