Olympus Epoch 6LT Ultrasonic Flaw Detector 6 LT

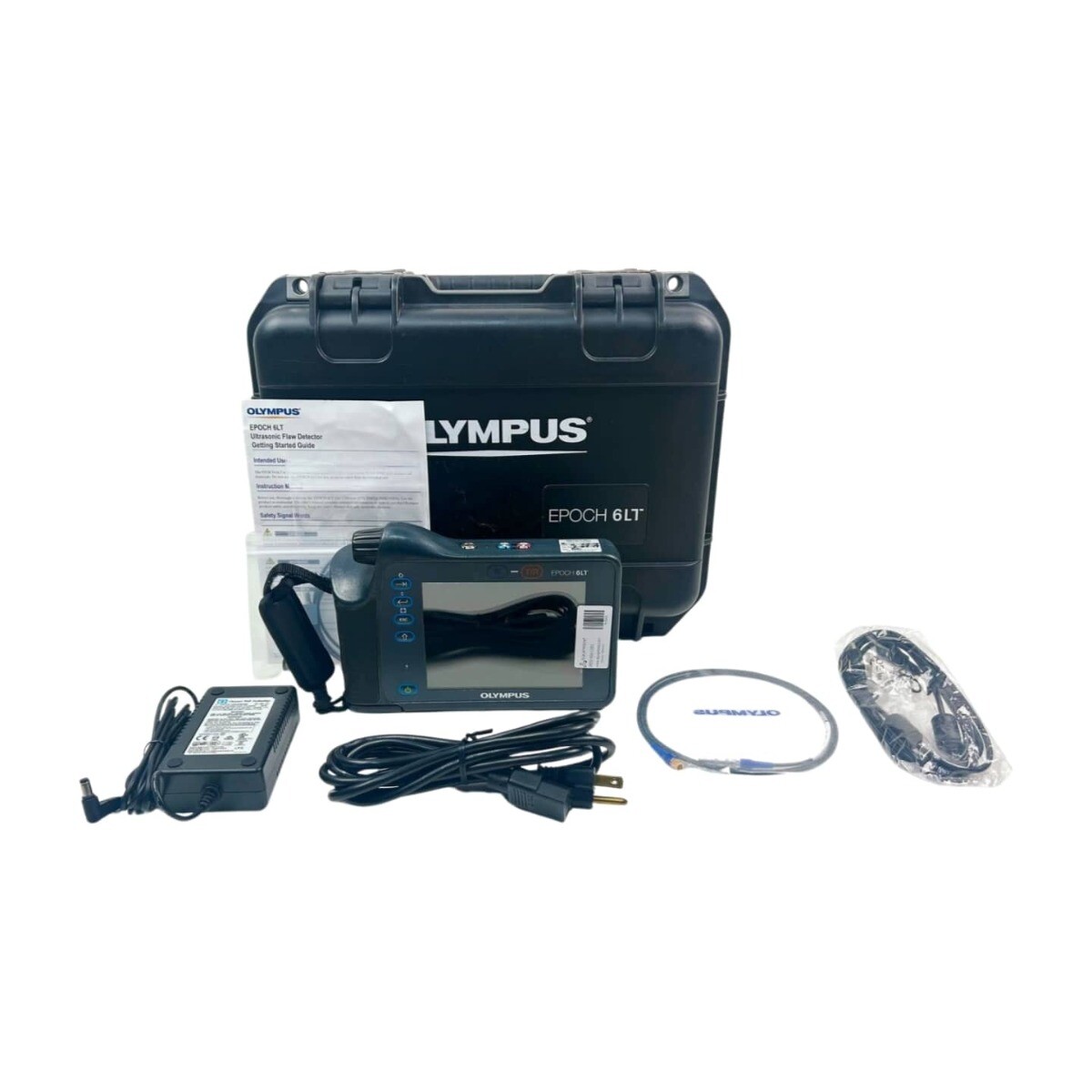

Like new condition Epoch 6LT from Olympus. This 6LT is in great condition with very little use. This unit has a scratch-free screen, and nicely tactile and functioning buttons. The kit as a whole functions perfectly.

The Olympus EPOCH 6LT Ultrasonic Flaw Detector is a one-hand operable flaw inspection device ideal for rope access applications due to its light weight of 1.95 pounds (890g) and one-hand grip. The other hand remains free while operating the EPOCH 6LT. Simply strap the instrument to your leg or harness while climbing, and then hold the instrument with the side strap, turning it to the alternative portrait view if necessary. The clear, bright screen displays readable A-scans in any light, and the button layout is designed to maximize simplicity. Olympus EPOCH 6LT units are engineered for IP65/67 compliance and drop tested.

Pulser

Pulser Tunable square wave

PRF 10 Hz to 2000 Hz in 10 Hz increments

Energy settings 100 V, 200 V, 300 V, or 400 V

Pulse width Adjustable from 25 nsec to 5,000 nsec (0.1 MHz) with PerfectSquare™ technology

Damping 50, 400 Ω

Receiver

Gain 0 to 110 dB

Maximum input signal 20 Vp

Receiver input impedance 400 Ω ± 5%

Receiver bandwidth DC to 26.5 MHz at -3 dB (standard version)

0.2 to 26.5 MHz at -3 dB (EN12668 compliant version

Digital filter settings 8 digital filter sets (standard version)

7 digital filter sets (EN12668 compliant version)

Rectification Full-Wave, Positive Half-Wave, Negative Half-Wave, RF

General Specifications

Transducer connections LEMO 00

Data storage 100,000 IDs onboard

Battery type and life Single lithium-ion rechargeable standard; 6 h life

Power requirements AC Mains: 100 VAC to 120 VAC, 200 VAC to 240 VAC, 50 Hz to 60 Hz

Display type Full VGA (640 × 480 pixels) transflective color LCD, 60 Hz update rate

Overall Dimensions (W × H × D) 209 mm × 128 mm × 36 mm, 58 mm at the hand grip (8.2 in. × 5 in. × 1.4 in., 2.3 in. at the hand grip)

Weight 890 g (1.95 lb.), including lithium-ion battery

Operating temperature -10 °C to 50 °C (14 °F to 122 °F)
