Hanley Automation are an official distributor for EPSON robots

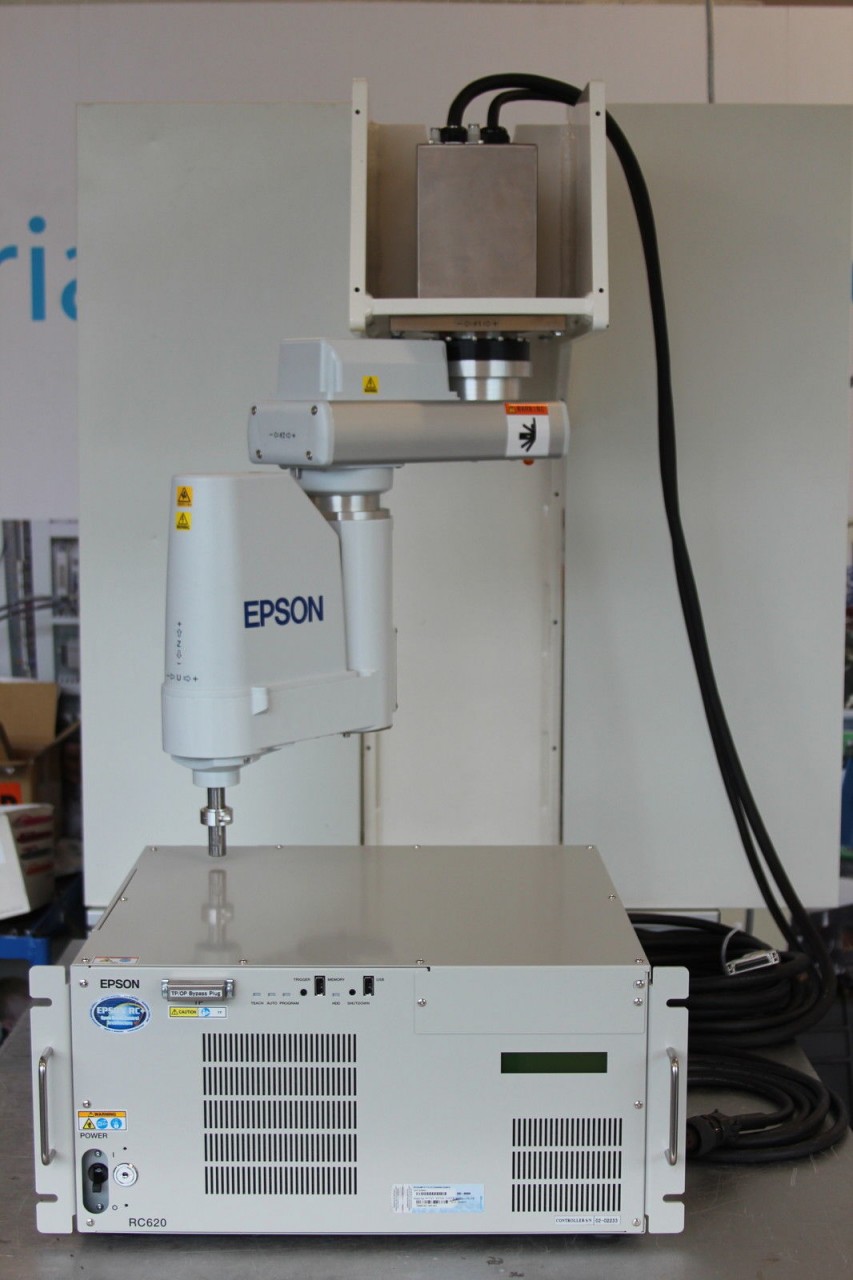

Epson Spider RS3-351C

RS3-351S

Se/No 00688

Year 01-2012



The Epson Spider is a new species of SCARA robots. These 4-axis robots designed like a human arm work on horizontal planes and are ideal for fast pick-and-place applications and assembly processes.

Apart from that, the Spider combines all advantages of the high-performance Epson SCARA robots. Among them are outstanding cycle times and joining properties, high insertion forces and rigidities, superb repeatability and an excellent deadload–payload ratio.

Reach (mm): 350

Payload (nom./max.) (KG):1/3

Max. square envelope: 495 x 495 mm

Max. motion range (Ø): 700 mm

Pallet size: e.g. 400 x 600 mm

Epson RC620

RC620

Se/No 02-02233

Year 01-2012

The compact RC620 is designed as a central controller for several robots in one cell; it can control up to 20 axes. Of course you can also use the RC620 as slave — the controller is as flexible as required.

Due to its open system design — a Windows-based industrial PC with standard interfaces such as USB, Ethernet, RS-232C as well as standard PCI and special slots — it can be smoothly integrated into existing production processes and can easily be combined with individual expansion cards and software.
