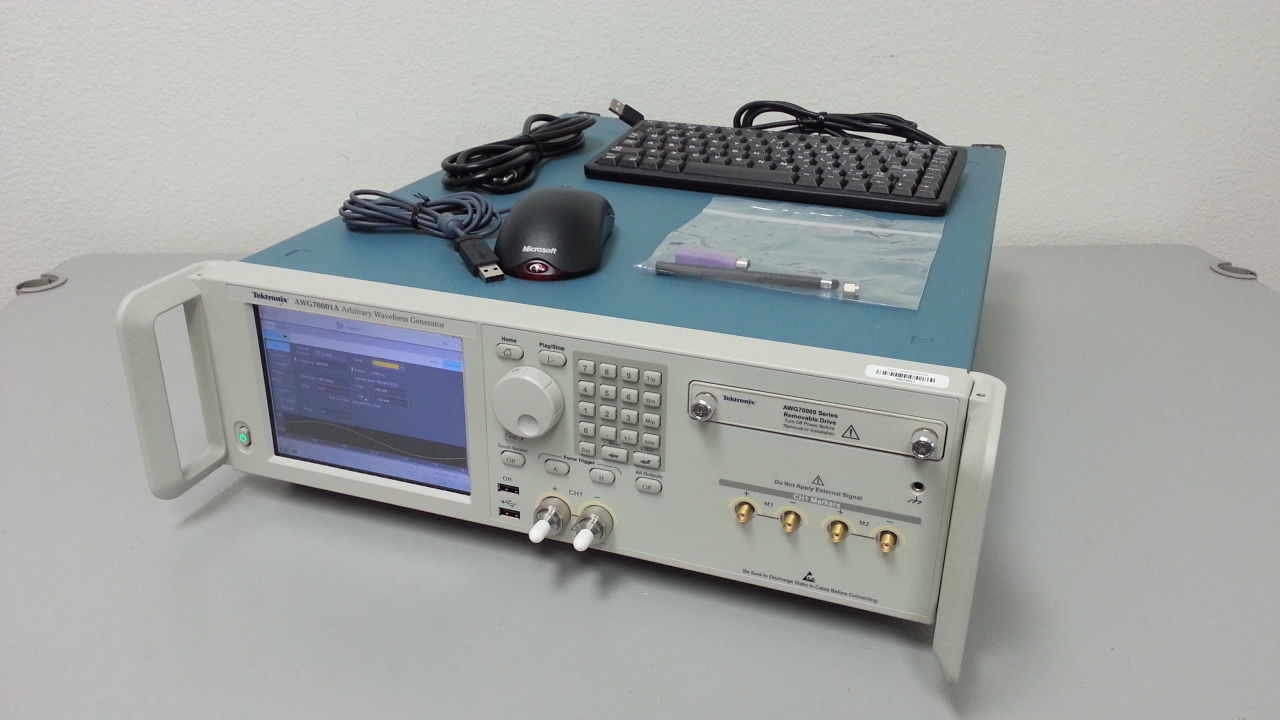

Tektronix AWG70001A Arbitrary Waveform Generator: 14 GHz, 1Ch, Opt 150 (50 GS/s)
Product Description
speci:
Leading edge AWG performance
Sample Rates up to 50 GS/s
80 dBc Spurious Free Dynamic Range
10 bits vertical resolution
16 GSample waveform memory
Complete solution for wideband RF signal generation in a single box
Direct generation of wideband signals with carriers up to 20 GHz, removing the need for external RF conversion
Simulate real-world analog effects on high speed digital data streams
Model signal impairments up to speeds of 12.5 GBs
Generate high precision RF signals
Spurious Free Dynamic Range performance better than -80 dBc
Create high speed baseband signals for optical transmission with the vertical resolution to handle higher order complex modulation
10 bits of vertical resolution at a sample rate of 50 GS/s
Create long waveforms scenarios without building complex sequences
Up to 16 GSamples of Waveform Memory plays 320 ms of data at 50 GS/s
Synchronize multiple units to achieve a multi-channel high speed AWG
system
Fully operational without external PC
Built-in display and buttons make it possible to quickly select, edit and
play waveforms directly from the front panel of the AWG
Simulate real-world environments by playing back captured signals
Waveforms captured with Oscilloscopes or Real-Time Spectrum Analyzers can be played back, edited or re-sampled on the AWG
Smooth transition from simulation to the real-world testing environment
Waveform vectors imported from third-party tools such as MATLAB,
Excel, and others
