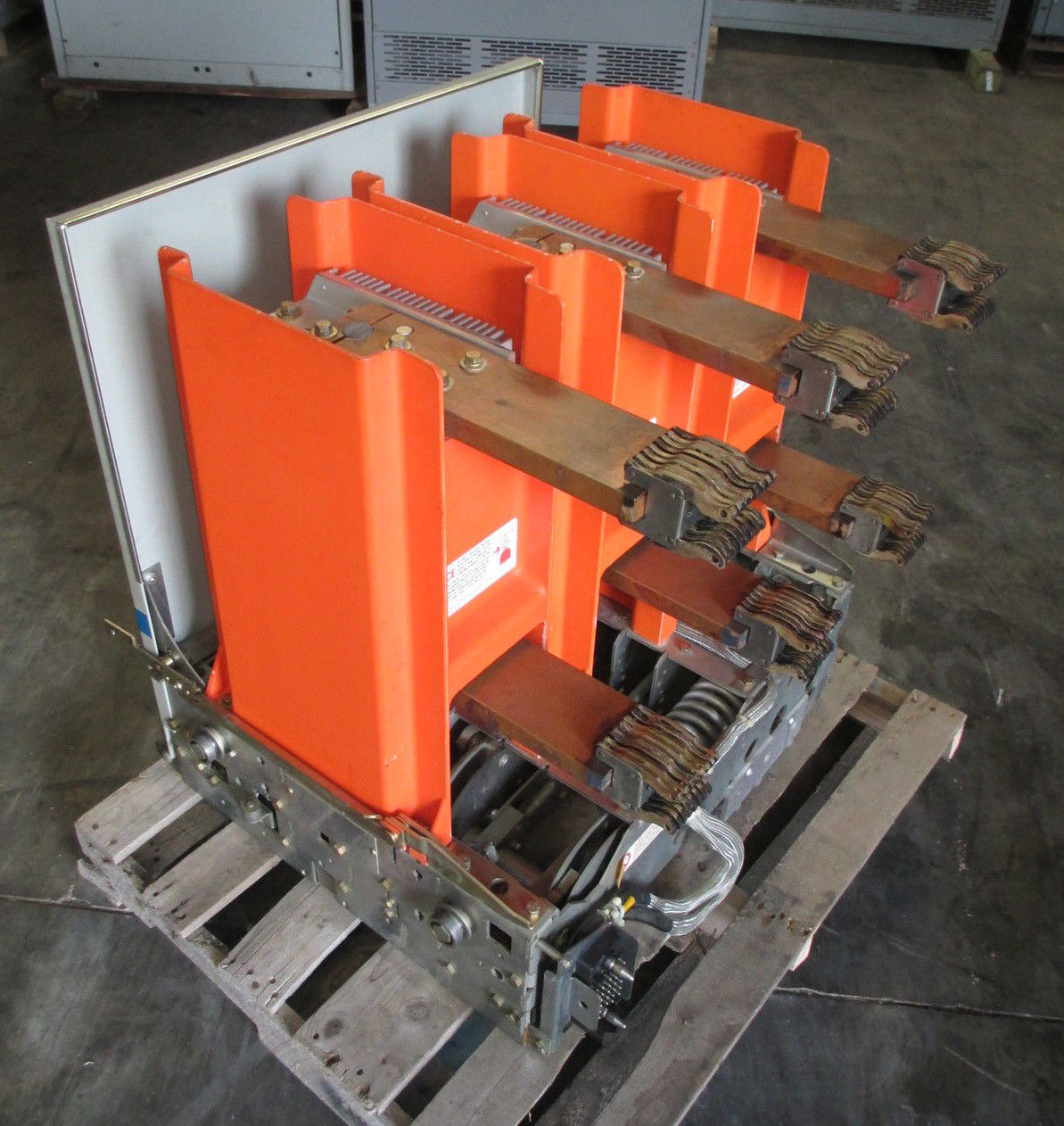

GE Power/Vac 2000A VB 13.8-1000-2 15kV Vacuum Breaker General Electric PowerVac

Image 1
  • Image 1
Price:
$7,900.00
SKU:
BG00038
Brand:
GE
Condition:
Used
Quantity:
Contact Us
Share

Product Description



spac:
General Electric
Model No. VB 13.8-1000-2
Power Vac Vacuum Circuit Breaker
2000 Amps | 15 kV
Name Plate Information -
Type: VB 13.8-1000-2
Rated Max Voltage: 15 kV - Rated Amp. 2000 - Hz: 60 - Impulse Withstand: 95 kV - Int. Time: 5 Cyc
Rated Short Circuit Amps: 37 kA - Rated Voltage Range Factor: 1.1 - Close & Latch Capability Amp.: 77 kA
Close Coil: 0282A2009P002 - Volts: 125 DC - Closing Amps.: 6 - Volt Range: 100-140
Trip Coil 1: 0282A2009P008 - Volts: 125 DC - Tripping Amps.: 8 - Volt Range: 70-140
UVD Trip Coil 2: 0282A2009P012 - Volts: 125 DC - Tripping Amps.: 0.08 - Volt Range: 18-75
Connection Diagram: 0209B6007P002 - WT: 650 lbs - Mech Type: ML17 - Date MFG: 1981
Vacuu,. Interrupter Type: 44B-3
Before Installing or Operating Read Inst. GEK-39671
Breaker Dimensions: 38" Tall x 32" Wide x 38" Deep
Dimensions (LxWxH): 32.00" x 38.00" x 38.00"
