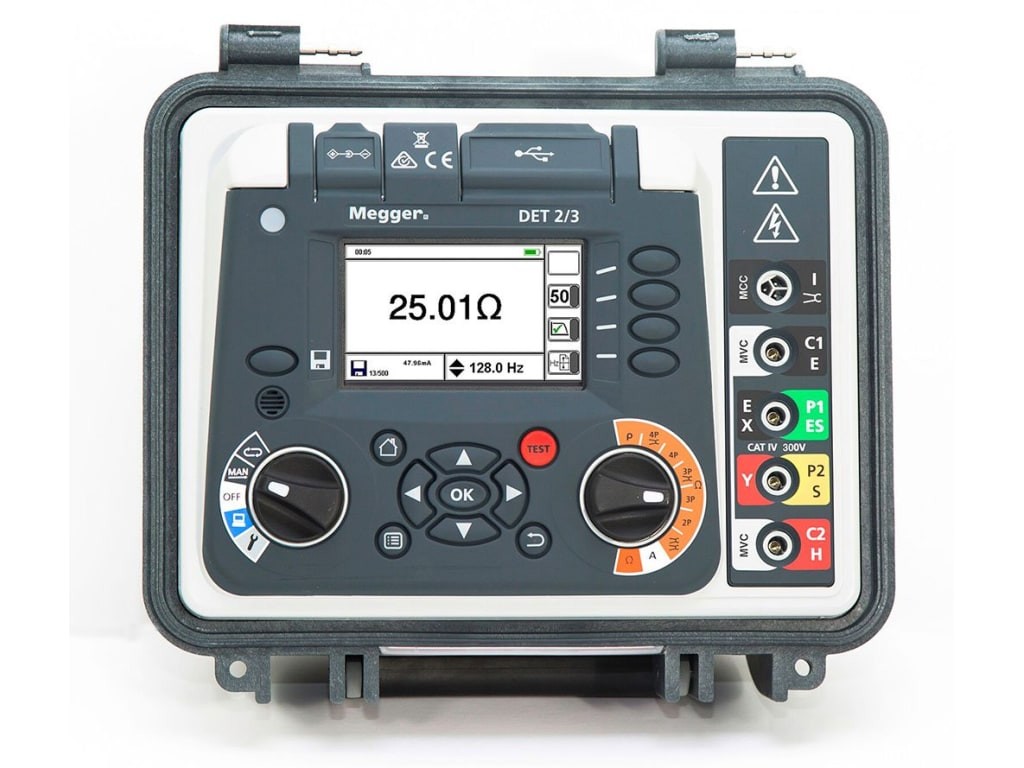

Megger DET2/3 High resolution of 1 mO, ideal for large ground systemsVersatile test modesHigh accuracy for ground electrode grid and soil resistivity testsRechargeable battery power that can last all day with a fast re-charge (up to 10 hours)Robust instrument with IP65 protection Ground Tester The Megger® DET2/3 automatic ground test instrument is robust, compact, and designed to measure ground electrode resistance and soil resistivity. It provides a full range of test methods and excels at the four-terminal method of measurement, which eliminates the resistance of the current circuit from the measurement.The DET2/3 is a reliable instrument for use on large or more complex ground systems, which include communications ground systems and difficult test environments. It can be used to test in accordance with BS 7430 (earthing / grounding), BS-EN-62305 (lightning protection), IEEE Standard 81, and railway applications.Soil resistivity measurements are used to establish the optimum electrode design and site, as well as archaeological and geological investigations.The DET2/3 is housed in a dual case design, which includes a tough outer case to protect the tester from knocks/drops and an inner fire retardant case. High-accuracy earth (ground) measurements The DET2/3 provides accurate 1 mO resolution measurements of ground electrode resistance.With its microprocessor-controlled system, it provides a flexible and ‘user-friendly’ approach to ground tests by the provision of excellent error detection capabilities and full test information shown on a large color display.Test frequency, test current, and filtering can be quickly and easily adjusted so that adverse conditions, which can influence the test, can be overcome.A wide band of test current frequencies, with a resolution of 0.5 Hz, can be used to eliminate errors caused by noise in the ground

Features:

Does not include leads - See kits and accessories for full system

High resolution of 1 mO, ideal for large ground systems

Versatile test modes

High accuracy for ground electrode grid and soil resistivity tests

Rechargeable battery power that can last all day with a fast re-charge (up to 10 hours)

Robust instrument with IP65 protection

Automatic test frequency selection, with filters and high current features

Diagnostic trace display

Data storage - 900,000 points

Large color display that shows numeric and graphical results
