IFRAeroflex MLS-800 Ground Landing Station SimulatorMicrowave Test Set

IFRAeroflex MLS-800 Ground Landing Station SimulatorMicrowave Test Set

Price:

$8,900.00

SKU:

BG00193

Brand:

IFRAeroflex

Condition:

Used

Availability:

Ready Stock

Product Description

IFR Aeroflex MLS-800 Microprocessor Controlled Ground Station Simulator / Microwave Landing System Test Set

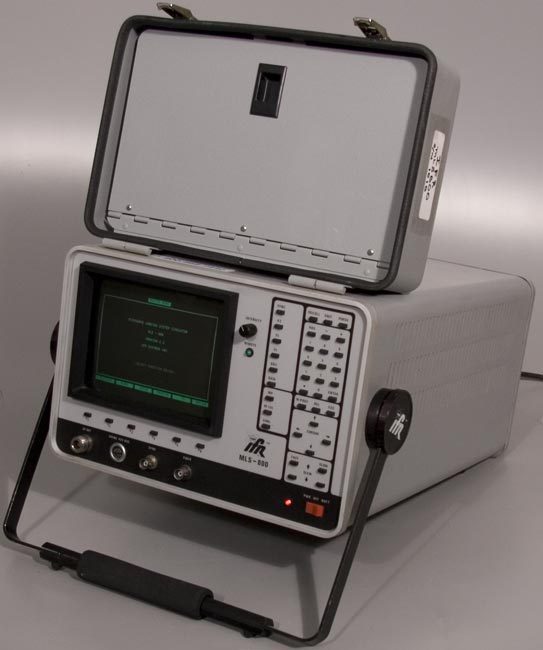

Comes with a manual, power cord, new battery packs, and what you see in the pictures. If you don't see it, you probably wont get it.

Specifications are from Aeroflex/IFR and may vary slightly due to upgrades, options, or revisions this unit may or may not have.

The unit is guaranteed to work for 30-days, parts and labor, excluding freight.

List Price is: Around $65,000.00 from Aeroflex/IFR NEW.

The Unit's Serial Number Tag Reads:

Model Number: MLS-800

Serial Number: 1010

Power Requirements: 103.5 to 253 V, 45 to 440 Hz

Software Version: 2.2

MLS-800 Microprocessor Controlled Ground Station Simulator:

The MLS-800 is a microprocessor controlled Ground Station Simulator designed to operate from a bench test environment. Test parameters are selected via a 44-position keyboard and displayed on test operational menus.

Test Operational Menu supports ICAO 1985 and EUROCAE ED-53A and ED-36A

Complete Main Path Simulation:

Approach (AZ) and High Rate Azimuth (HiAZ)

Elevation (EL)

Back Azimuth (BAZ)

Flare (FL)

Complete Multi-path (MP) Simulation Capability:

Interference Pulses

Selectable Fade Rate Modulation of 0.05, 1 and 1000 Hz

Control of all Beam Parameters:

Angular Position

Beam Amplitude Referenced to the Preamble

Norm and Half Width Pulse

Selectable Beam Width at 0.5°, 1°, 2°, 3°,4° or 5°

Sync Capability for:

External Monitoring

Designating PFE and CMN Function

Designating Multi-path Function

Preamble Parity, Symmetry and Percent Update

Simulates all Basic Data Words plus Auxiliary Data Words with Parity Selection

Full Range of MLS Channels

RF Signal Generator Specifications:

Frequency Range: 5031 to 5090.7 MHz

Steps: 0.3 MHz

Accuracy: ±1.0 kHz (measured with Main Path in CW and Multipath OFF)

RF Output Power:

Level Range: -17 to -122 dBm

Level Accuracy: ±2.0 dB

Level Flatness: ±0.5 dB at -20 dBm (measured with 1000 Hz Fade Rate applied to Multipath with Multipath OFF, 14 dB Pad applied, and Main Path in CW, 0 dB modulation)

Note: A 0.2 to 0.4 dB variation in level at Fade Rate is normal operation and is due to residual component of Multipath signal. A 0.8 dB variation is normal for Multipath signal at Multipath = 0 dB, Main Path = OFF.

Attenuator Accuracy: ±1.0 dB

Attenuator Monotonicity: ±0.5 to 1.5 dB (each step)

Spectral Purity:

Noise Floor Offset: -105 dBc/Hz (±0.3 to 1.2 MHz from Cf)

Note 1: 105 dBc/Hz is approximately equal to -60 dBc in a 30 kHz bandwidth.

Note 2: Total spurious power should not exceed -15 dBc or -35 dBm at -20 dBm level setting from 50.0 kHz to 12.4 GHz.

Residual FM Modulation: <1 kHz peak, 0.01 to 15 kHz BW

Residual Phase Modulation: <0.5 radians peak, 0.3 to 15 kHz BW

Spurious Signal Rejection (in-band):

±0.3 to 1.2 MHz: -45 dBc

±1.2 to 30 MHz (band end): -65 dBc

Spurious Signal Rejection (out-of-band):
