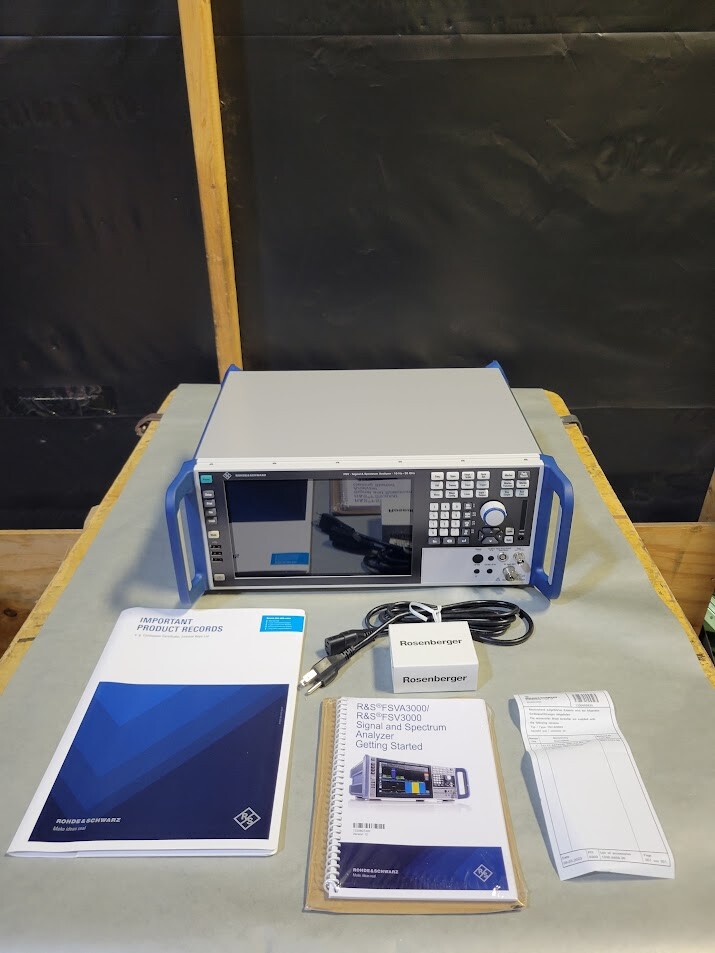

Rohde & Schwarz FSV3030 Signal & Spectrum Analyzer 10 Hz - 30 GHz
Product Description
Rohde & Schwarz FSV3030 Signal & Spectrum Analyzer 10 Hz - 30 GHz
Description
*This listing is for a new item in an open, distressed box.
*There was no damage to the items within.
*All photos are of the exact item that you will be sent and only what is pictured is included in this sale.
Frequency range: 10 Hz to 30 GHz
Resolution bandwidth (-3 dB): 1 Hz to 10 MHz
Analysis bandwidth: 28 MHz (standard) to 200 MHz (option)
SSB phase noise: -107 dBc (1 Hz) at 10 kHz offset (1 GHz)
TOI (Third-Order Intercept): 18 dBm (typ.) At 1 GHz
DANL: -151 dBm (typ.) At 1 GHz, -165 dBm (typ.) At 1 GHz with PreAmp (optional)
Measurement application for analog and digital signal analysis incl. 5G NR
Maximum input power: 30 dBm
Marker resolution: 1 Hz
Interfaces: 5x USB 2.0 type A, 2x USB 3.0 type A, 2x reference input / output, external trigger, LAN 10/100 / 1000BASE-T, DVI for external monitor, optional: GPIB, 10 Gbit / s LAN, USB 3.0 type B, Display port for external monitor
Power supply: 100 to 240 V AC, 50/60 and 400 Hz
Dimensions: W 462 × H 197 x D 417 mm
Weight: 13.8 kg
