Functional characteristics

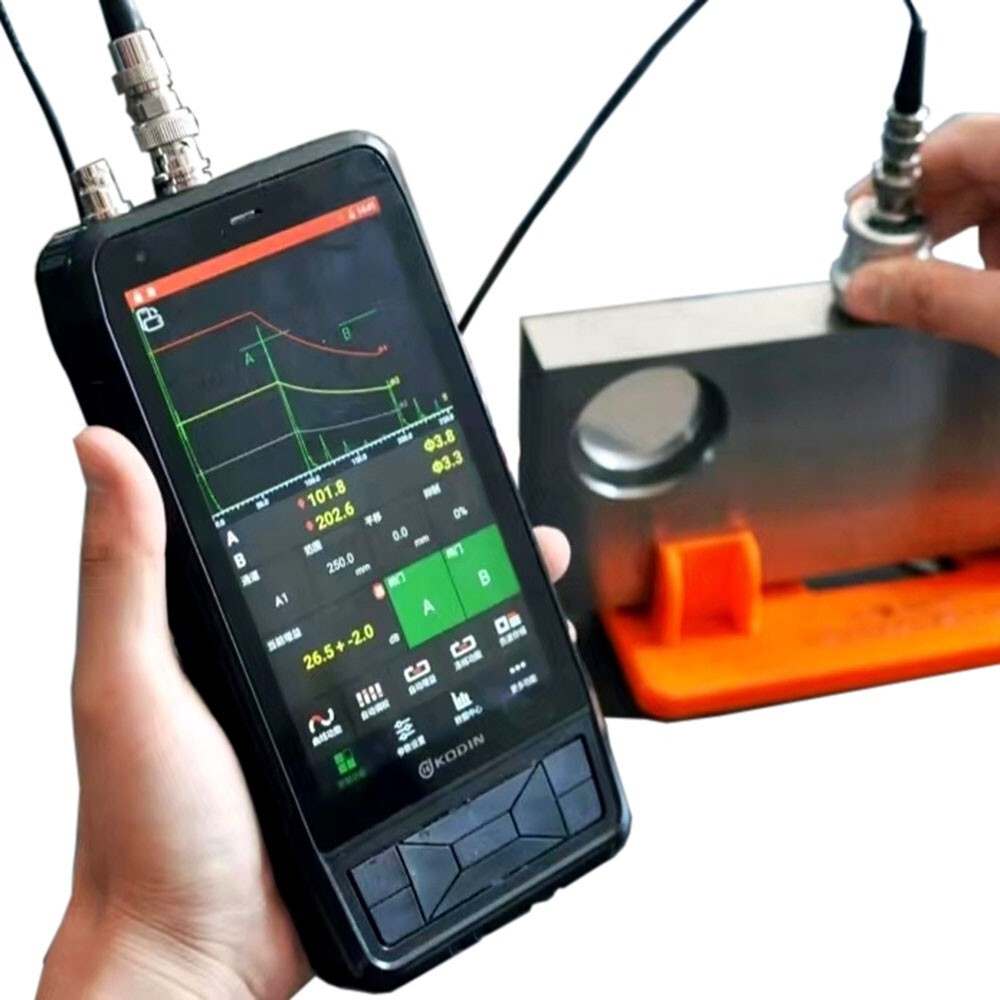

This intelligent ultrasonic flaw detector in line with JJG 746-2004 "ultrasonic flaw detector", JB JJG 746-2004 "ultrasonic flaw detector", JB/T 9214-2010 "non-destructive testing of A-type pulse reflection ultrasonic testing system performance testing methods" and other national or industry standards. It not only has but also has the following characteristics：

1. Body safety protection: Suitable for various industrial sites, with a three proof design of anti

drop, dust, and water resistance;

2. Real time remote data interaction function: Test data, on-site photos, and operation videos

during the detection process can be shared in real-time with remote online partners;

3. Intelligent human-machine interaction interface: Based on the Android operating system,

touch screen and physical buttons are used for human-machine interaction. In addition, the use of IPS

color screen makes human-machine interaction more convenient;

4. Convenient on-site measurement monitoring function: dual cameras are installed in the front

and back, allowing it to record the detection process through photo shooting or video recording,

easily capturing every measurement moment;

5. Remote expert video function: Implement real-time video calls with remote expert teams or

supervision units to remotely assist in the on-site inspection process;

6. Data cloud backup function: It can synchronously backup massive measurement data, on-site

photos, or videos during the detection process to a dedicated cloud server for easy access at any time;

7. Multi functional deep customization: provides users with specialized and personalized

customized services, which can be tailored to the needs of different industries and customers;

8. Built in super large capacity dedicated lithium-ion battery: fast charging in 2 hours, providing

you with an ultra long continuous working experience;

9. Adopting an original structural design, greatly limiting the volume and weight of the

instrument itself, truly achieving portable handheld use;

10. Provide up to 260 independent flaw detection channels, set channel parameters

independently according to user needs, and can be saved and used at any time;11. Automatically generate defect detection reports (including parameters, data, images, videos,

etc.), and the content and format of defect detection reports can be customized according to user

requirements, providing expandable storage space for defect detection reports up to 64GB;

12. Integrating voice broadcasting function, providing a way for you to learn about flaw

detection information when it is inconvenient for you to watch the screen;

13. More user-friendly operating experience: landscape display, high-definition screen recording,

optional theme colors, indicator light reminders, integrated design of 4G network card and TF card,

wrist strap protection, etc.

2. Technical parameters

Detection range: 10-5000mm, continuously adjustable, step values: 0.1mm, 1mm, 10mm or

50mm

Delay range: 0-500mm, continuously adjustable, step values: 0.1mm, 1mm, 10mm or 50mm

Gain range: 0-110dB, continuously adjustable, step values: 0.1dB, 1dB, 2dB or 6dB

Sound speed range: 1000-9999m/s, built-in steel material default sound speed values:

transverse wave speed 3240m/s and longitudinal wave speed 5940m/s

Waveform suppression: 0-80%, continuously adjustable, default step value: 1%

Pulse width: 100-300ns, a total of 11 options available, with an optional pulse width interval of

20ns per option

Matching resistance: 200 Ω, 500 Ω two options

Emission voltage: 200V, 400V two options

Automatic wave height: 20-80%

Working mode: single crystal, twin crystal

Probe type: straight probe, angle probe, twin crystal probe

Probe frequency: 0.5-20MHz

Probe zero deviation: 0-42μs

Detection methods: positive detection, negative detection, full detection, RF

Alarm function: gate alarm, curve alarm

Wave amplitude reading: percentage of wave amplitude, relative gate equivalent, relativecurve equivalent Φ Value display Φ 4 equivalents

Vertical linear error:<3%

Horizontal linear error:<1%

Sensitivity margin:>42dB

Resolution:>30dB

Dynamic range:>32dB

Temperature conditions: -10℃~40℃

Humidity conditions: (20%~90%) RH

Power supply method: built-in DC: 5000mAh/7.6V lithium-ion battery power supply; Or

external AC: 220V/50Hz AC power supply with adapter (10V/2A)

Screen display: 6-inch IPS color LCD screen

Appearance size: approximately 216 * 98 * 28 (mm)

Overall weight (including battery): approximately 570g
