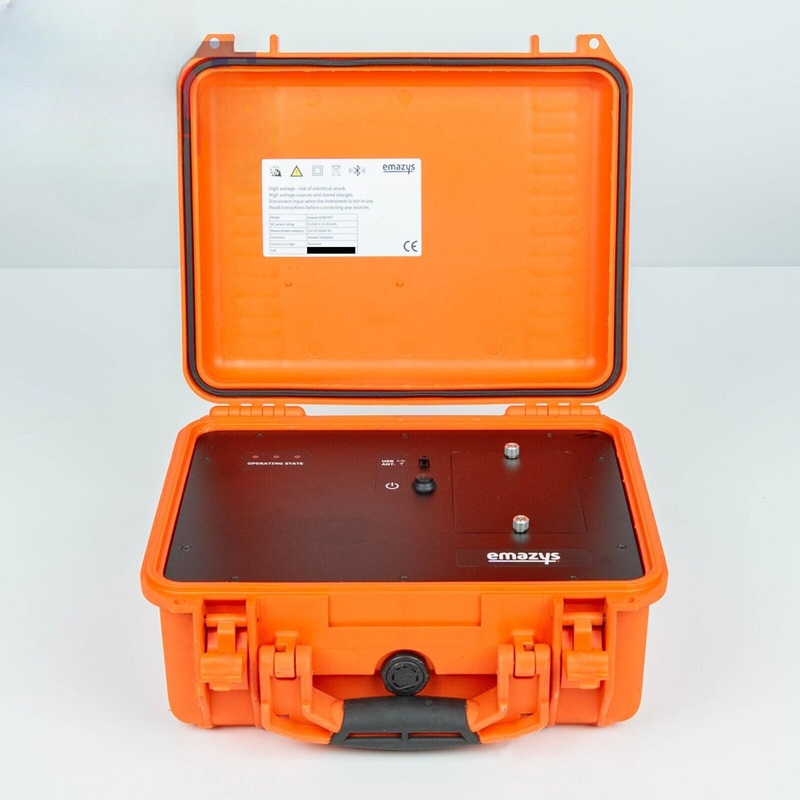

Emazys Z300 PVT-1500 V / 30A DC Photovoltaic Testing and Troubleshooting Kit
Product Description
Emazys Z300 PVT-1500 V / 30A DC Photovoltaic Testing and Troubleshooting Kit
The Z300 PVT is a 1500V solar PV tester for fast, accurate troubleshooting. Test voltage, current, polarity, insulation resistance, and series resistance while detecting and locating hidden faults. Comes with real-time cloud data logging, to streamline maintenance work. Easy access to reports online, and effortless export of data.
The Z300 PVT instrument and software package quickly checks key parameters like voltage, current, polarity, and isolation and series resistance. It detects ground faults and hidden isolation issues, helping you resolve problems fast. The built-in signal generator and amplifier probe make it easy to locate disconnections in cables or modules.
- Save to cloud functionality
- Instrument control via smart device (phone, tablet)
- Controller App available for iOS and Android
- Meta data in reports: GPS, timestamp, photo, module, environment data etc.
- Single test report as PDF
- View data as GPS map or table format
- Export data as unlimited CSV files
- Rechargeable battery with operating time of 8-10 hours
- Open circuit voltage Voc [0 – 1500V]
- Short circuit current Isc [0 – 30A]
- Electrical polarity [OK/not OK]
- Isolation resistance Riso [0 – 40 MΩ]
- Isolation resistance fault location measurement [Riso < 3MΩ]
- Series resistance Rs [0 – 10 kΩ]
- Tone generator + amplifier probe
- Frequency Coverage: 100 Hz to 100 kHz
- Frequency Accuracy: ±2 %
- Frequency Drift with Temperature (°C to 35°C) >0.1
- Measurement of Short Circuit Current (ISC) Z300 PVT
- DC Current Range 0-30 A
- Measurement of Open Circuit Voltage (VOC) Z300 PVT
- Analysis for VOC Checks for correct polarity and voltage in range
- VOC Range 0-1500 V
- Measurement of Resistance towards Ground (RISO) Z300 PVT
- RISO Range 0 Ω - 40 MΩ
- Measurement Time About 20 sec
- Conditions for RISO Measurement Irradiation > 100 W/m² and string VOC > 100 V
- Precision (Stable Light Conditions) ±50 kΩ ±10%
- Analysis for RISO Above 40 MΩ, RISO is returned as RISO > 40 MΩ; Below 100 kΩ, RISO is returned as RISO < 100 kΩ
- Detection and Localization of Ground Isolation Fault (RISO) Z300 PVT
- Threshold for Localization of Ground Fault 3 MΩ
- Localization Precision (Stable Light Conditions) ±0.5 PV module
- Localization Resolution 0.1 PV modules
- Conditions for Fault Localization Irradiation > 100 W/m² and String VOC > 100 V
- Analysis for Fault Localization Fault indicated (with text in user interface) if RISO < 1 MΩ
- Measurement of Series Resistance (RS) by Impedance Spectroscopy Z300 PVT
- Conditions for RS Measurement Irradiation > 100 W/m²
- emazys Z300 PVT with Built-in Case
- Banana Croc/GND testing Lead
- 2 x Banana-MC4 PV Testing Lead (Black & Red)
- Tone Pickup
- RRC-SMB-MBC Standard Battery Charger
- Power Supply Charger
- AC Power Cable
- Z300 PVT User Manual
