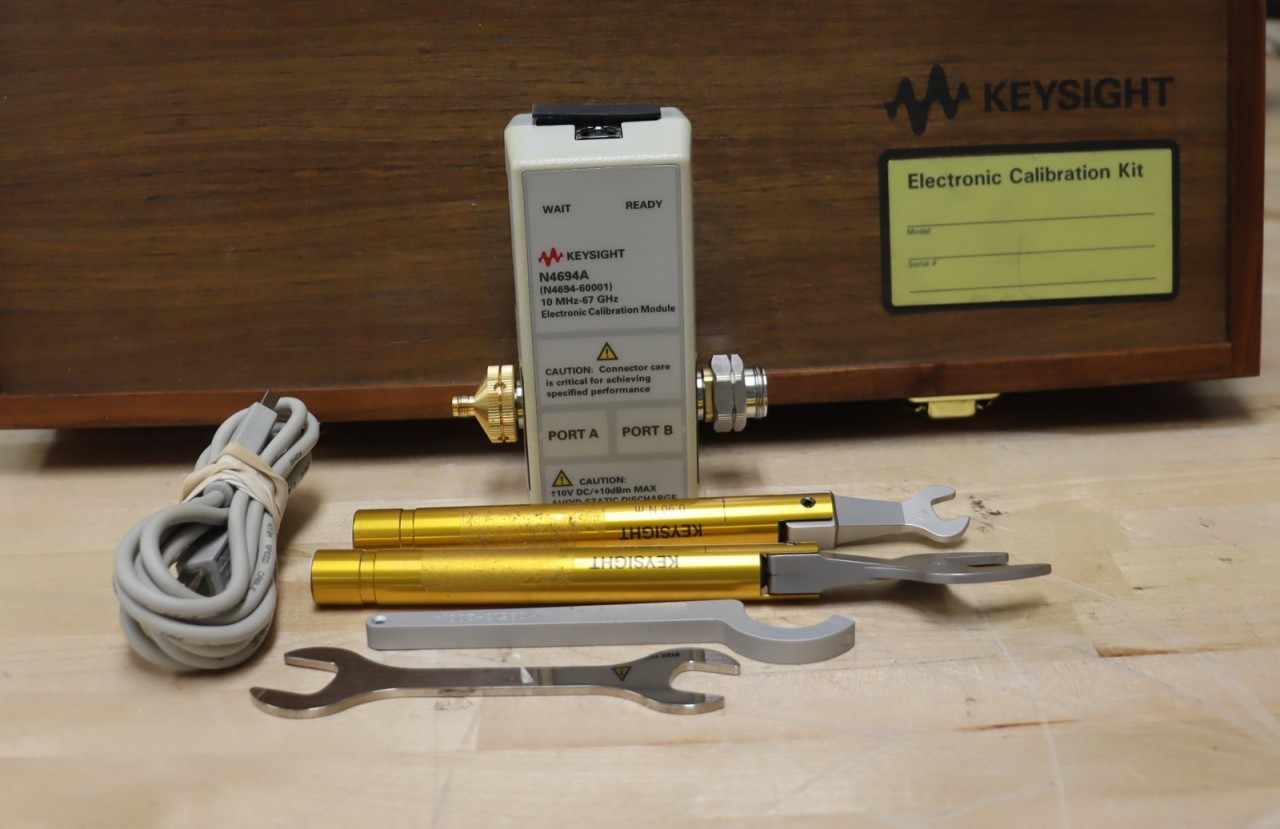

This is an Agilent Keysight N4694A E-Cal Module.  This unit is in GREAT shape, and guaranteed fully operational. I have TWO of these, one per bid.  Both units have option M0F connectors.

Description

The Agilent N4694A MW electronic calibration (ECal) module makes calibration of vector network analyzers fast, easy and accurate. The RF ECal system is now easily controlled by one of two methods depending on the network analyzer. The Agilent PNA and ENA series of network analyzers controls the module directly via the USB interface. The modules can also be controlled via an 85097B interface kit when used with an Agilent 8753E/ES/ET or 8720D/ES/ET. (This requires a special parallel cable and firmware Rev. 7.74).

ECal is an ideal solution for calibrating network analyzers. Performing a full two-port calibration takes less than half the time and number of connections using ECal versus mechanical cal kits. Furthermore, the accuracy of the calibration is comparable between electronic and mechanical methods. Traditional mechanical calibrations require intensive operator interaction which is prone to errors. With ECal, the operator simply connects the ECal module to the network analyzer and the software controls the rest.

Features:

10 MHz to 67 GHz frequency range

USB interface for direct control with PNA and ENA series of network analyzers

Alternative 85097B interface when used with other analyzers

Fast calibration

Full two-port calibration with a single connection

Reduced connector wear

NIST traceable accurate calibrations

Reliable solid-state switching
