Options Included:

010 - Add time domain capability

014 - Configurable test set deck

016 - Add receiver attenuators

080 - Frequency offset

081 - Reference-receiver switch

083 - Frequency converter measurement application

UNL - Extended power range with bias tee

MSRP: $160,866

Product Overview

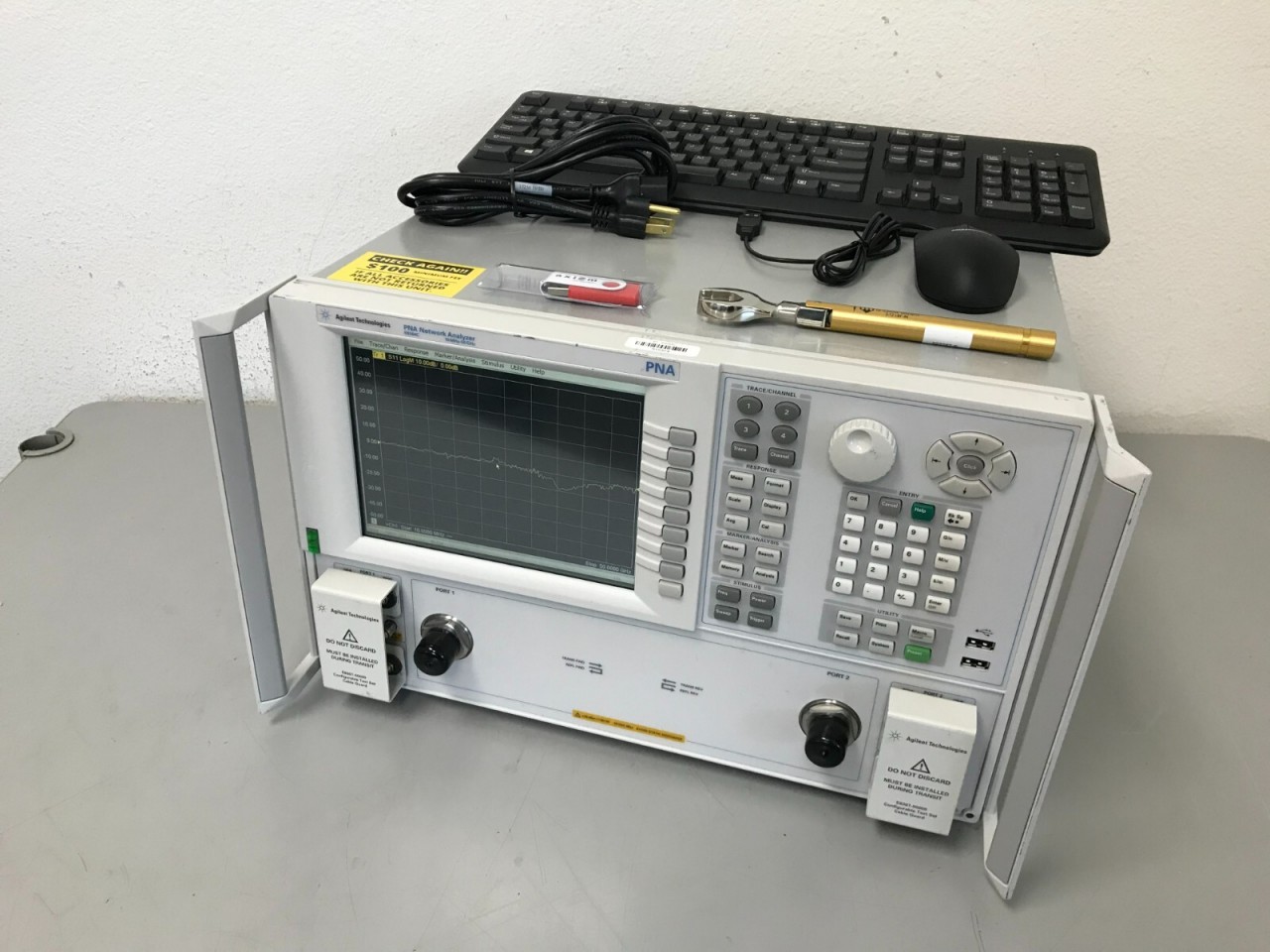

Agilent E8364C Network Analyzer is part of Agilen't PNA series of network analyzer (Performance Network Analyzers) and feature the highest levels of accuracy for your critical needs. The Agilent E8364C has a wide frequency range of 10 MHz to 50 GHz and has 2-Ports and 4 Receivers. An integrated S-parameter test set with four receivers allows true TRL calibration. TRM/LRM calibration, on-wafer, in-fixture, waveguide and antenna measurements are all part of this Network Analyzers capabilities. A large 8.4 LCD front panel display with touch screen (1024x768 resolution) is integrated into the instrument. Enhanced Windows graphical user interface. Hard keys and soft keys for simple operation without a mouse are featured. And an optional configurable test set is available with option 14.

Features and specifications of the Agilent E8364C Network Analyzer include:

< 26 usec/point measurement speed

Measurement channels: 32 independent measurement channels

Measured number of points per sweep: User definable from 2 to 20,001

System Dynamic range up to 50 GHz: 104 dB standard at 10 Hz IF bandwidth

Amplifier gain compression, harmonic, IMD, and pulsed-RF

Mixer conversion loss, return loss, isolation, and absolute group delay

Trace noise: < 0.006 dB rms at 1 kHz IF bandwidth standard and with option 14

Nominal power: -12 dBm standard, -17 dBm with options 14 and UNL

Frequency resolution: 1 Hz

Phase noise: -50 dBc at 1 kHz offset nominal

Test port noise floor: < -114 dBm 10 Hz IF bandwidth standard

IF bandwidth range: 1 Hz to 40 kHz, nominal

RF connectors 2.4mm male (50ohm)

VGA video output-15-pin mini D-Sub

Interfaces:

GPIB-Two ports: dedicated controller and dedicated talker/listener

USB-1 port on front panel and 4 ports on rear panel

LAN-10/100 BaseT Ethernet; 8-pin configuration auto selects
