Product Description

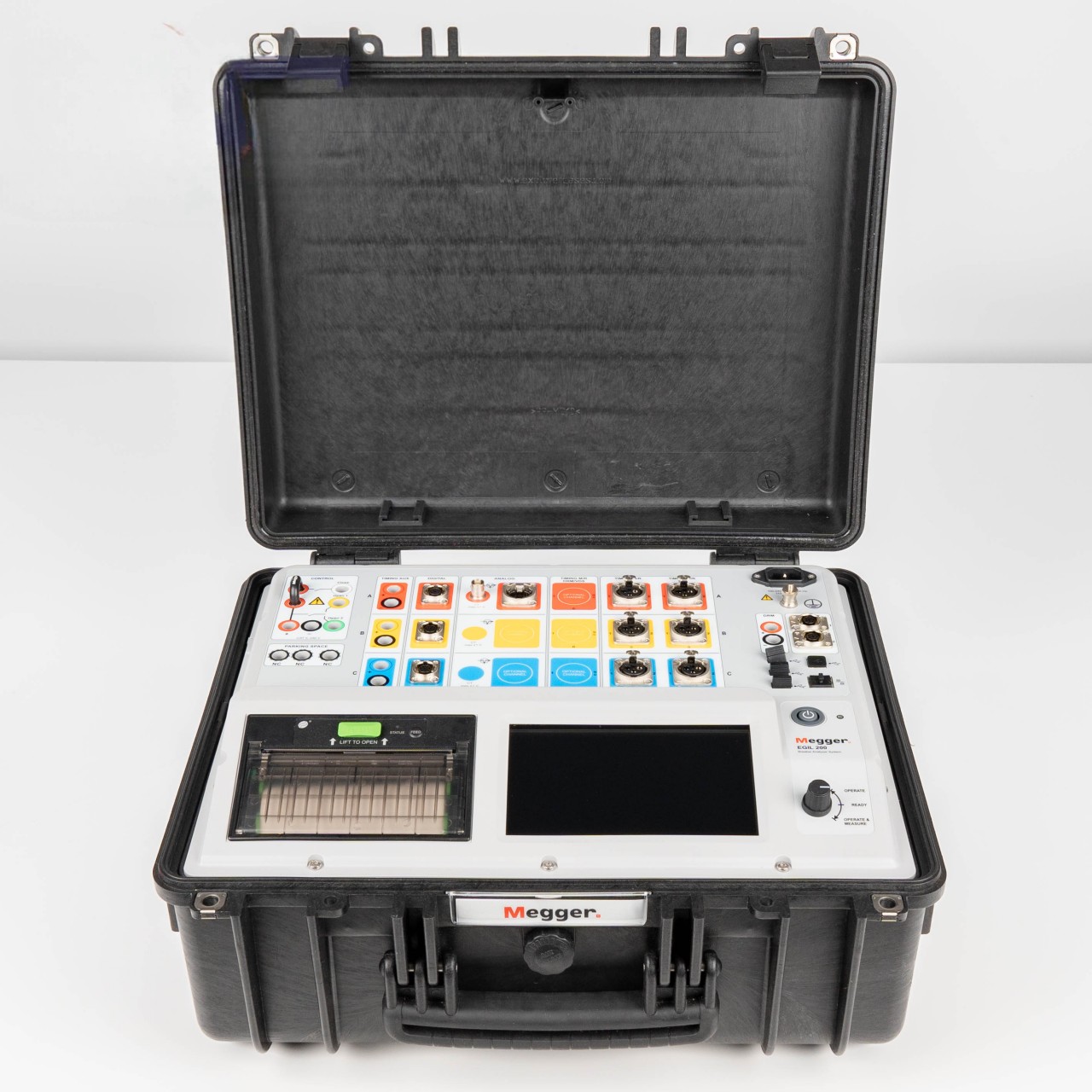

Megger EGIL200 Circuit Breaker Analyzer

The EGIL200 circuit breaker tester is the initial model in Megger's new line of circuit breaker analyzers. It was created in close collaboration with international industry reference groups, utilizing knowledge gained from the Megger TM series of circuit breaker analyzers, which is the industry leader and wildly popular. The EGIL200 was developed with a focus on user-friendliness, which ensures that the amount of effort spent setting up measurements is minimized. Because of this, you may obtain your test results quickly using the EGIL200. In order to accomplish all of the following measurements or actions, you only need to connect the test leads once thanks to the simplified connection to the test object:

Main and PIR contact timing
Analysis of coil current in closed, open, and two coils
Measurements of station voltage
Motion measurements
Measurement of motor current

Advantages:

The EGIL200 introduces premium features from the TM series into the reasonably priced mid-range market and provides all standard measurements from IEEE C37 and IEC 62271 standards:
Provides all standard metrics in accordance with global norms.
Simple and intuitive operation: from instrument power-up to recorded measurement result, the least amount of human intervention is required.
Made for circuit breakers with medium to high voltages
Reporting to PDF or printing on an optional integrated printer with a single click
An open coil's dedicated control output 2.
Multifunctional control channels that can assess station voltages and coil currents and handle control pulses with a single link
Auxiliary contact timing channels that are polarity independent and galvanically insulated, automatically adjusted for wet and dry contacts
Patented Active Interference Suppression technology provides precise pre-insertion resistor contact timing and resistance value measurement.
