Megger DLRO100EB Micro Ohmmeter

Home
Ohmmeters Megohmmeters
Megger DLRO100EB Micro Ohmmeter

Megger DLRO100EB Micro Ohmmeter

Price:

$5,050.00

SKU:

BG00003

Brand:

Megger

Condition:

Used

Availability:

In Stock

Product Description

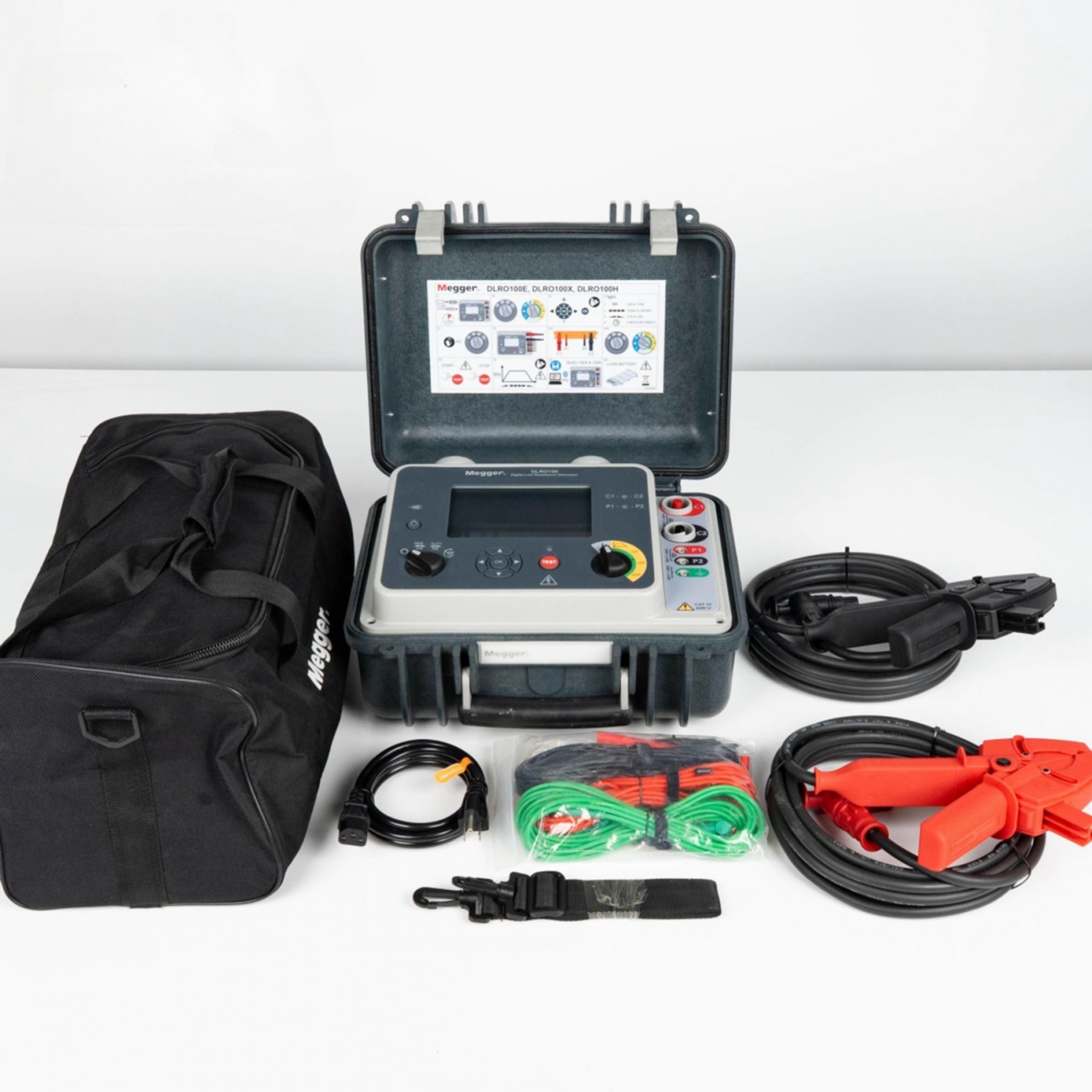

Megger DLRO100EB Portable 100 Amp Digital Low Resistance Ohmmeter DLRO100 Series

The Megger DLRO100EB 100 A portable micro-ohmmeter makes it possible to measure low resistance in a variety of settings, including places without mains power. The integrated Li-ion battery increases productivity in remote areas by providing a steady 100 A current for up to 200 automated or manual testing.

With an emphasis on user safety, the DLRO100EB's sophisticated design features—which include a CAT IV 600 V safety rating in line with IEC61010—also guarantee the instrument's safe operation under the most trying circumstances. Furthermore, even under the most trying circumstances, dependability and usability are guaranteed by the robust design, user-friendly interface, and IP54 (lid open) rating.

DLRO100 Series

A significant addition to Megger's long range of Low Resistance Ohmmeters, the DLRO100 series makes it possible to measure low resistance in a variety of applications, even in places without mains power. Its integrated Li-Ion battery increases productivity in remote areas by providing a constant 100 A current for up to 200 Manual/Auto tests. Languages and plug/mains lead alternatives are also offered.

Specifications:

Measurement range: 0.1 μΩ - 1.999 Ω
Resolution: 0.1 μΩ
Noise rejection: Differential 100 mV @ 50-60 Hz on test leads
DC output: Smooth DC
IP rating: IP54 Open / IP65 Closed
Operating temperature range: -4°F to +122°F (-20°C to +50°C)
Storage temperature range: -22°F to +158°F (-30°C to +70°C)
Humidity: <85% R.H. non-condensing
Battery life: 200 single 100 A tests or up to 2x 10 minutes continuous 100 A output
Battery type: User replaceable Li-ion battery pack
Battery charge time: Full charge in 2.5 hrs from flat
Maximum output voltage: 2 V (battery), 3 V (a.c.)
