Megger DLRO H200 Micro Ohmmeter
Product Description

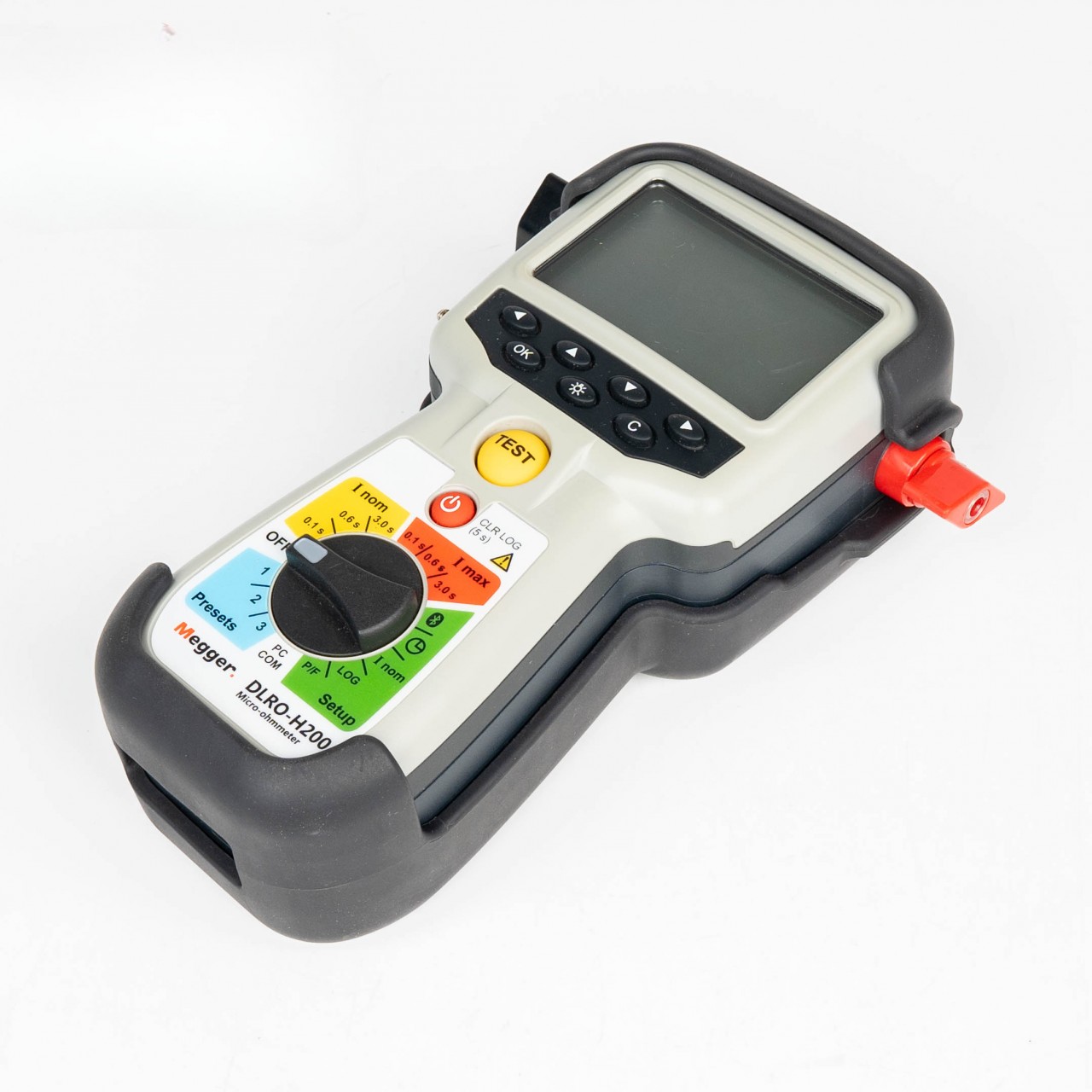

Megger DLRO-H200 High-Performance Handheld 200 A Micro Ohmmeter
The purpose of the DLRO-H200 portable 200 A micro-ohmmeter is to test the resistance of high current connections such as busbar joints and circuit breaker contacts. Safety, use, and adaptability were all considered in the design of this device. You may use this micro-ohmmeter anyplace to get an accurate reading on a low resistance value.
Specifications
Temperature
- Operation: -20ºC to +50°C (-4°F to +122°F)
- Storage: -40ºC to +70ºC (-40°F to +158°F)
- Battery Operation Temperature: 0ºC to +50°C (32°F to +122°F)
- Battery Charging Temperature: +10ºC to +40°C (50°F to +104°F)
- Relative Humidity: 5%-95%, non-condensing
Classifications and Standards
- Pollution Degree: 2
- Shock: IEC 60068-2-27
- Vibration: IEC 60068-2-6
- Transport: ISTA 2A
- Flammability Class: V0
General
- Battery Power: Five AA (HR6) 2700 mAh NiMH cells
- Recharge Time: < 12 h
- Typical Recharge Time at 25°C: 3 h
Battery Charger
- Mains Voltage: 100-250 V AC, 50 / 60 Hz
- Power Consumption: 24 W
- Protection: Against wrong battery type, low/high temperature.
- Real Time Clock Battery Life: ≥10 years
- Audible Feedback: Different buzzer sounds
- User Presets: 3
- Field Calibration: Yes
- Encapsulation: IP54
Package Includes
- Megger DLRO-H200 Micro-ohmmeter
- Megger Transport Case
- 2 x Test Cables with Kelvin Probe
- AC Power Cable
- AC To DC Power Supply Charger
- DLRO-H200 Micro-ohmmeter Quick Guide
- DLRO-H200 DLRO-H200 Win Micro-ohmmeter User's Manual
Warranty Information
60-Day warranty
