Product Description
spac:

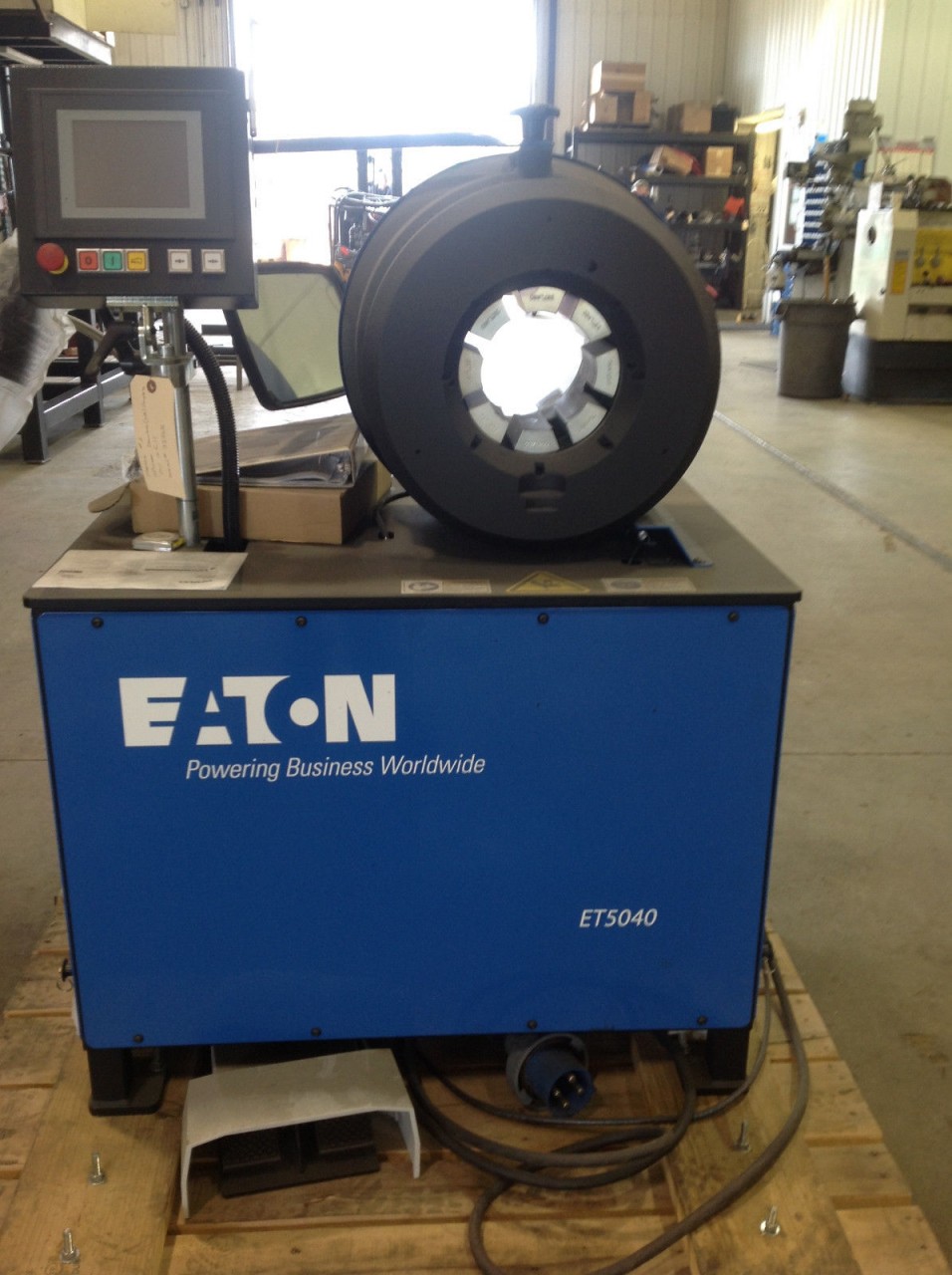

Eaton ET5040 Crimp Machine
Crimp Capacity:
Spiral Hose: up to 2" (DN51)
Braided Hose: up to 3" (DN80)
Industrial Hose: up to 4" (DN102)
Mounting:Free standing with adjustable telescoping legs
Size:
Legs fully extended (centerline of crimp head): 52" (1321 mm) high
Legs fully retracted (centerline of crimp head): 36" (914 mm) high
Crimp Force:280 ton (2800 KN)
Reservoir Capacity:13.2 gallons (50 liters)
Hydraulic Oil:Industrial grade HM or HV46 ISO 6743/4
Power Option:230V 3 Phase 50/60 Hz
Also Included:
ETC5040C-0009 Viewing Mirror
ETC5040C-0020 Double Pedal Foot Switch
ETC4001C-0017 Magnetic Work Lamp
ETC5040PBL-M900 - Die
Die Size: 3.543 in (90 mm)
Die Length: 4.65 in (118 mm)
Crimp Range: 3.55 in (90 mm) minimum, 3.89 in (99 mm) maximum
