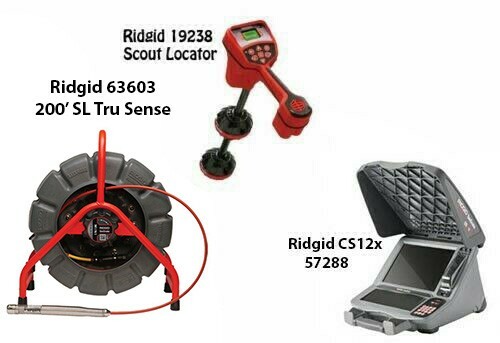

Ridgid 200' Color Self Leveling Tru Sense Reel (63603) Navitrack Scout Locator (19238) CS12X (57288)

Ridgid 200' Color Self Leveling Tru Sense Reel (13988)

200’ SeeSnakeSelf Leveling Standard Camera with TruSense

Down pipe visibility vastly improved with High Dynamic Range(HDR) giving more clearly defined detail of pipe characteristics. Rugged,high-intensity LEDs for exceptional viewing and long life. Self-leveling camerahead keeps the image upright (certain models) Powerful FleXmitter® sonde haslong range and preserves the camera's ability to make turns. High Dynamic Range(HDR) image sensor offers bright, clear in-pipe imaging in difficult lightingconditions TiltSense displays the camera's pitch in a pipe on a connectedSeeSnake CSx series monitor.

Features:

The SeeSnake Standard camera reel offers unmatched reliability and performance in a ruggedized package

Now available with TruSense™ technology

The Standard has the stiffest push cable and is available in lengths up to 200' (99 m) – making it perfect for long runs, particularly in larger pipes with fewer turns.

Rugged, high-intensity LEDs for exceptional viewing and long life.

Self-leveling camera head keeps the image upright.

Powerful FleXmitter® sonde has long range and preserves the camera's ability to make turns.

High dynamic range (HDR) image sensor offers bright, clear in-pipe imaging in difficult lighting conditions.

TiltSense displays the camera's pitch in a pipe on a connected SeeSnake CSx series monitor.

Specifications:

·        Line Capacity      2"- 12" (5-30cm)

·        Maximum Run   200'(99m)

·        Sonde   512Hz

·        Weight (without monitor)            53 lbs. (19.5 kg)

·        Reel Frame Diameter     32" (81 cm)

·        Camera Diameter             1.365"(35 mm)

·        Camera Length  1.68"(42 mm)

·        Push Cable Diameter      .44" (11 mm)

·        Operating Temperature -4˚ to 104˚F (-20˚ to 40˚C)

·        Waterproof Depth           330'(100 m)

·        Video Resolution              656(H)x 492(V)

Navitrack Scout Locator (19238)

The NaviTrack Scout Locator is designed to solve the most demanding remote transmitter (sonde) locates using multi-directional locating technology.

Easier Locates

The NaviTrack Scout multi-directional antenna technology sees the entire signal all of the time. Simply maximize the signal strength and you have found the target. No nulls or false peaks to complicate the locate.

Accuracy

This locator verifies the locate position using a micro-mapping display to mark distinctive poles in front of and behind the target, insuring an accurate locate.

Automatic Depth

Depth is automatically calculated and displayed when over the target.

Weight 3 lbs (1,4 kg)

Power Source 4 C-Cell batteries

Battery Life Approximately 24 hours

Specifications

Weight 3 lbs (1,4 kg)

Power Source 4 C-Cell batteries

Battery Life Approximately 24 hours

Standard Frequencies

Sonde 512 Hz, 640 Hz and 33 kHz

Line Trace 128 Hz, 1 kHz, 8 kHz and 33 kHz

Passive AC Line Trace 60 Hz, 50 Hz

Ridgid CS12X Digital Recording Monitor (57288)

The CS12X Monitor combines RIDGID® durability with the easiest to use digital recording monitor inthe industry. One touch recording allows you to record snapshots and video directly to a USB stickthen hand it directly to your customer.

Features

USB Stick - recording lets you record digitally into a format that your customer can read on theircomputer

12.1" Daylight Readable Display - allows you to easily monitor and record inspections in brightoutdoor environments

Integrated Line Tracing - allows tracing the reel push cable with a RIDGID locator (requires aRIDGID transmitter)

Multi Mode Recording - lets you take snapshots, record full frame video, and record in a leanvideo format called Auto-log (small files)

Software Integrations - with SeeSnake HQ™ allow you to deliver your inspections in a wide arrayof formats from online to DVD

Specifications

Weight 13 lbs (5,9 kg)

Length 14.3" (36,3 cm)

Width 11.9" (30,2 cm)

Height 12.4" (31,5 cm)

Display 12.1" Daylight Readable LCD

Resolution 640 x 480

Power Source 1 or 2 RIDGID 18V Advanced Lithium 2 Battery or AC Plug

Audio Integrated Microphone and Speaker

Video AVI 20FPS - 720 x 480

Image JPG - 720 x 480

Transfer USB stick

Software Includes SeeSnake HQ Software
