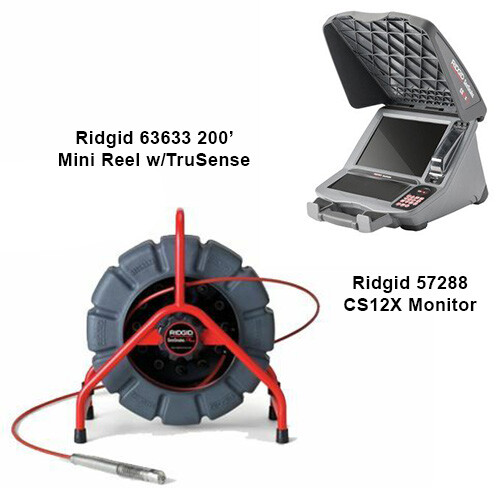

Ridgid 200' MINI Reel with TruSense (63633) CS12X Monitor (57288)

SeeSnake Mini Camera with TruSense  200' Mini 30mm Non-SL TruSense (63633)

The SeeSnake Mini with TruSense provides down pipe visibility, vastly improved with High Dynamic Range (HDR), giving more clearly defined details of the pipe characteristics. The rugged, high-intensity LEDs provide exceptional viewing and longer life. Powerful FleXmitter® sonde has long range and preserves the camera's ability to make turns. High Dynamic Range (HDR) image sensor offers bright, clear in-pipe imaging in difficult lighting conditions TiltSense displays the camera's pitch in a pipe on a connected SeeSnake CSx series monitor.

Features:

The SeeSnake Mini camera reel is the smaller version of the SeeSnake Standard system

Now available with TruSense™ technology

The Mini's moderately stiff 200' (61m) push cable strikes a good balance between stiffness and the ability to navigate turns

Rugged, high-intensity LEDs for exceptional viewing and long life.

Powerful FleXmitter® sonde has long range and preserves the camera's ability to make turns.

High dynamic range (HDR) image sensor offers bright, clear in-pipe imaging in difficult lighting conditions

TiltSense displays the camera's pitch in a pipe on a connected SeeSnake CSx series monitor.

Specifications:

Line Capacity         1 1/2" to 8" (40 to 200 mm)

Maximum Run      200' (61m)

Sonde     512 Hz

Weight (without monitor)  24.5 lbs. (11,1 kg)

Reel Frame Diameter          20" (51 cm)

Camera Diameter 1.18" (30 mm)

Camera Length     1.68" (42 mm)

Push Cable Diameter           .31" (8 mm)

Operating Temperature     -4˚ to 104˚F (-20˚ to 40˚C)

Waterproof Depth               330' (100 m)

Video Resolution  656(H) x 492(V)

Number of Pixels 323K.

Lighting  6 LEDs or 18 LEDs (for self-leveling model)

Ridgid CS12X Digital Recording Monitor (57288)

The CS10 Monitor combines RIDGID® durability with the easiest to use digital recording monitor in the industry. One touch recording allows you to record snapshots and video directly to a USB stick then hand it directly to your customer.

Features

USB Stick - recording lets you record digitally into a format that your customer can read on their computer

12.1" Daylight Readable Display - allows you to easily monitor and record inspections in bright outdoor environments

Integrated Line Tracing - allows tracing the reel push cable with a RIDGID locator (requires a RIDGID transmitter)

Multi Mode Recording - lets you take snapshots, record full frame video, and record in a lean video format called Auto-log (small files)

Software Integrations - with SeeSnake HQ™ allow you to deliver your inspections in a wide array of formats from online to DVD

Specifications

Weight 13 lbs (5,9 kg)

Length 14.3" (36,3 cm)

Width 11.9" (30,2 cm)

Height 12.4" (31,5 cm)

Display 12.1" Daylight Readable LCD

Resolution 640 x 480

Power Source 1 or 2 RIDGID 18V Advanced Lithium 2 Battery or AC Plug

Audio Integrated Microphone and Speaker

Video AVI 20FPS - 720 x 480

Image JPG - 720 x 480

Transfer USB stick

Software Includes SeeSnake HQ Software
