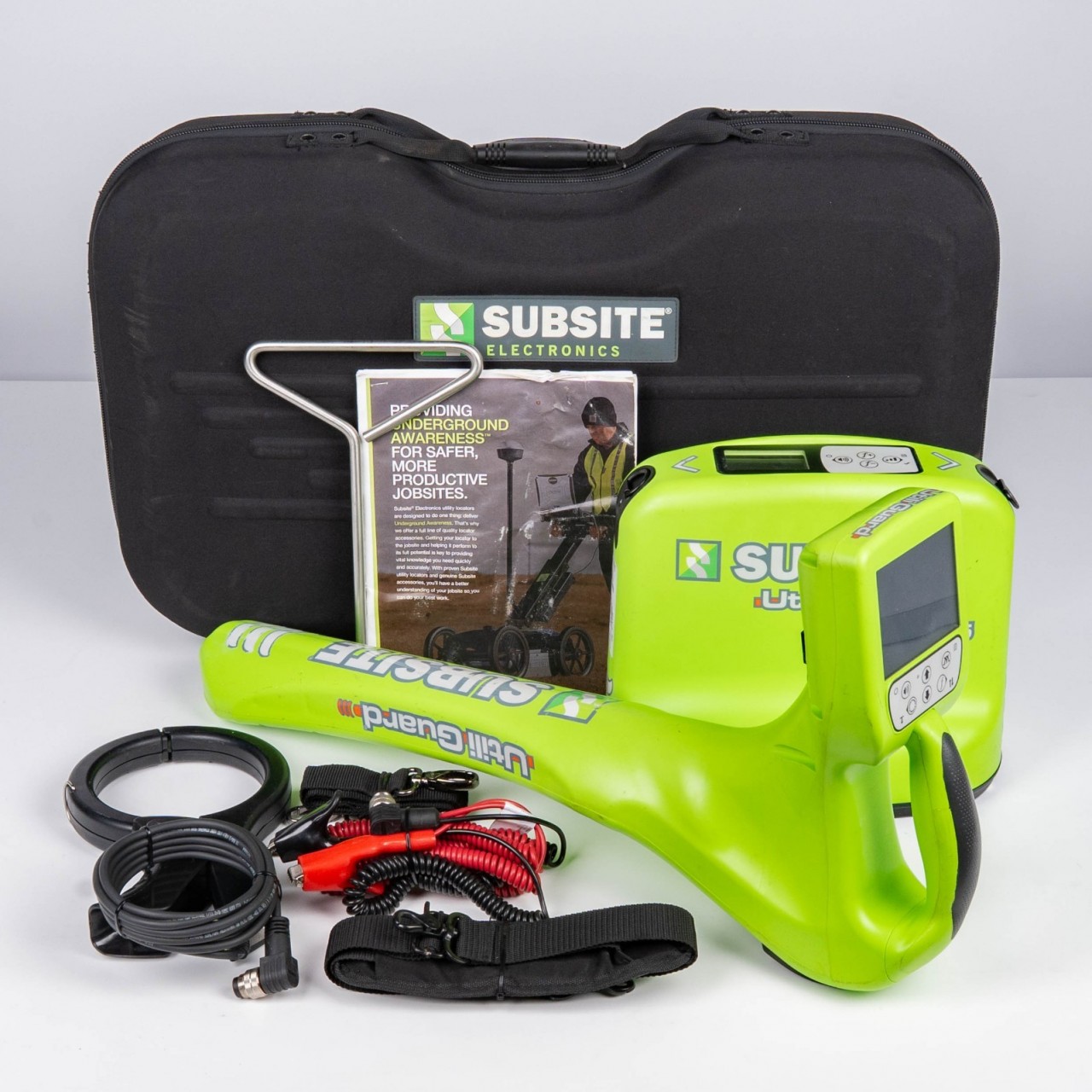

Subsite UtiliGuard Utility Locating System Cable/Pipe Locator Receiver W/ T5 Transmitter and all accessories seen in photogaraphs. Unit is used and in excellent condition with some signs of previous use. Thoroughly tested to be in working order with a 60-Day warranty. For questions please contact us. We appreciate your business!

Product Features:

The Subsite UtiliGuard Utility Locating System has accuracy enhancing features you can’t get on other locators. Ambient Interference Measurement (AIM) technology automatically recommends the best frequency. An available 12-watt transmitter drives signals farther down large, direct-buried utilities. And only the UtiliGuard locating system can provide the depth and horizontal distance to the utility. Don’t take a risk on anything else. Get the UtiliGuard locating system.



Highlights:

High-contrast LCD display is visible in all conditions, including direct sunlight.

Remotely control the transmitter with the receiver. (+)

Provides horizontal and vertical distance (depth) to the utility to enable users to make accurate locates of obstructed utilities. (+)

Bluetooth technology simplifies communication and data transfer to GPS devices. (+, S)

UtiliGuard is direction enabled, i.e., provides the direction of the current to help you identify the target line. (+, S)

AIM scans the surrounding area for noise and recommends the best frequencies for the fastest, most accurate locates. (+)

Dual-output transmitter connects to two utilities at once, reducing the time required to locate multiple services. (+)

Ability to change the frequency and power level from the receiver and switch leads between utilities when using dual output. (+)

12-watt transmitter drives signals farther down large, direct-buried utilities. (+, S)

Intuitive operator interface is easy to learn and use, and includes multiple languages. (+, S, B)

Superior battery life: transmitter 100+ hours (max), receiver 30 hours (max); more than twice as long as the competition’s. (+, S, B)

Ruggedly built UtiliGuard has an industry-best IP65 rating to ensure excellent performance in dusty, dirty or wet jobsite conditions. (+, S, B)

Choose from 70 standard frequencies via user-configurable software. (+, S)



Specifications

Reciever

Specification Details

Frequency Range 50 Hz – 200 kHz

Sensitivity 1 µA at 1 m (33 kHz)

Dynamic Range 145 dB rms/√Hz

Selectivity 117 dB

Depth (Auto Depth) Max 20 ft (6 m)

Depth (Forced) Max 40 ft (12 m)

Locate Accuracy ±5% of depth

Dynamic Overload Protection 30 dB (automatic)

Mode Accuracy (Imperial) Accuracy (Metric)

Line ±5% to 10 ft ±5% to 3 m

Sonde ±5% to 10 ft ±5% to 3 m

Passive ±10% to 10 ft ±10% to 3 m
